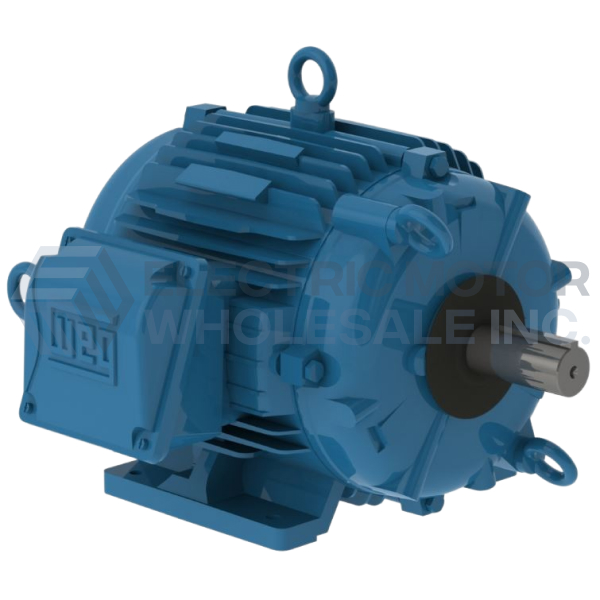

25HP WEG 1770RPM 284T TEAO 3PH COOLING TOWER MOTOR 02518AT3ECT284TF1-W2

25HP WEG 1770RPM 284T TEAO 3PH COOLING TOWER MOTOR 02518AT3ECT284TF1-W2


Part Number:

02518AT3ECT284TF1-W2

Model/Spec Number:

12126284

Manufacturer:

WEG
02518AT3ECT284TF1-W2 WEG 25HP Three Phase TEAO Cooling Tower Motor is designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting.
MSRP: $3,333.00

Regular Price

USD

$

2,966

37

QTY
Login to View Discounts

Weight:

408 lbs

Dimensions:

26 x 30 x 23 inches

HS Code:

8501.53.0000

UPC:

7909018578910

Technical Details

Brand:

WEG

Application:

Cooling Tower

Output HP:

25//20

Output KW:

18.5//15

Output RPM:

1770//1455

Frame Size NEMA:

284T

Mount NEMA:

With Base

Enclosure NEMA:

IC418 - TEAO

Enclosure IEC:

IP55

Voltage:

208-230/460//380

Product Information Packet

WEG’s TEAO Cooling Tower Motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.

Features:

  • 1.25 Service Factor
  • Stainless Steel Nameplate - Laser etched with high contrast background
  • Double Sealed bearings
  • Multiple end-bell drain plugs for shaft up, down or horizontal mounting
  • Space Heaters
  • Drain plugs in terminal box
  • Rubber lead separator between terminal box and frame
  • Internally and externally epoxy painted
  • Double sealed bearings
  • Double impregnation and bake
