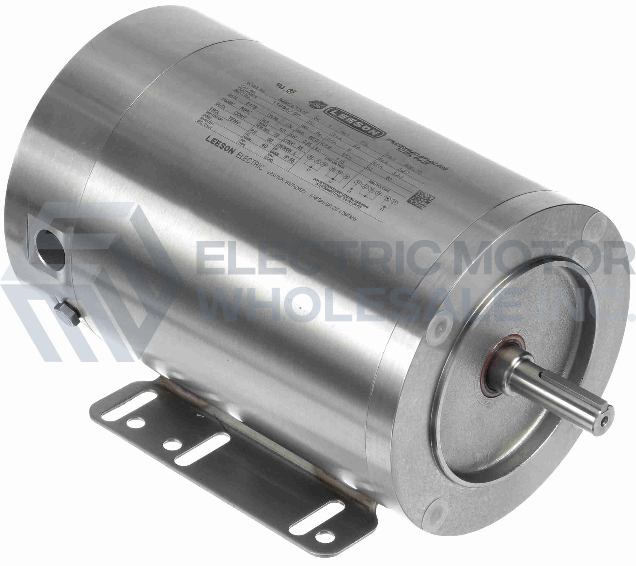

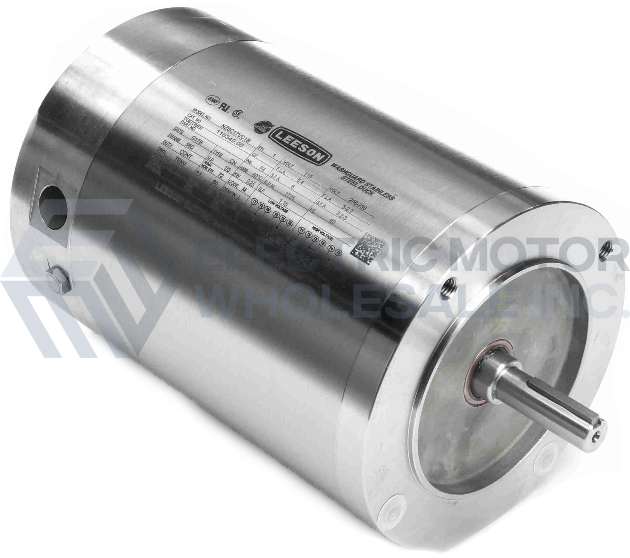

LEESON Single Phase WASHGUARD Premium Duck Stainless Motors

LEESON WASHGUARD Premium Duck All-Stainless Motors are designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries. These motors are also ideal in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.

FEATURES:

• Durable 300-Series stainless steel exterior components- frame, endshields, shaft extension, fan guard, hardware, conduit box and cover
• C-Face mounting provisions
• Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail
• Double sealed bearings with moisture resistant high temperature grease
• Interior coatings applied to the rotor and stator protect against corrosion
• Viton sealing components for superior chemical resistance
• Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
• LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
