1/2HP BALDOR 1750RPM 56C 90VDC PERMANENT MAGNET WASHDOWN MOTOR CDPSWD3430

1/2HP BALDOR 1750RPM 56C 90VDC PERMANENT MAGNET WASHDOWN MOTOR CDPSWD3430


Part Number:

CDPSWD3430

Model/Spec Number:

34-6694-3662G1

Manufacturer:

ABB/Baldor
CDPSWD3430 BALDOR 1/2HP Permanent Magnet Paint Free Washdown motor is designed for food processing conveyors and feeders where the motor is exposed to high pressure wash down.
MSRP: $2,165.00

Regular Price

USD

$

1,555

91

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

37 lbs

Dimensions:

13 x 21 x 14 inches

HS Code:

8501.51.4040

UPC:

781568220955

Technical Details

Application:

Stainless Washdown

Output HP:

1/2

Output KW:

0.37

Output RPM:

1750

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

90

Full Load Amps:

5.2

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

CDPSWD3430-InfoPacket

APPLICATIONS: includes food processing and packaging where the motor is exposed to high pressure wash down.

  • Class F insulation
  • 5/8" Keyed output shaft
  • Moisture resistant 200°C magnet wire
  • Sealed ball bearings with moisture resistant grease
  • Contact lip seals on shaft extensions
  • Neoprene gaskets
  • 300 series stainless steel motor frame, base, shaft and hardware
Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

MSRP: $249.00

Regular Price

$

174

30

Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

MSRP: $358.00

Regular Price

$

250

60

Image for 2HP KBPI-240D KB Electronics NEMA4 115/230VAC Indexer Drive 8500

2HP KBPI-240D KB Electronics NEMA4 115/230VAC Indexer Drive 8500

Image for 2HP KB Electronics KBPI-240DR NEMA4 115/230VAC Indexer Drive (Reversing) 8501

2HP KB Electronics KBPI-240DR NEMA4 115/230VAC Indexer Drive (Reversing) 8501

Image for KBRG-240D KB Electronics 11AMP DC Regenerative Chassis Drive 8802

KBRG-240D KB Electronics 11AMP DC Regenerative Chassis Drive 8802

MSRP: $527.00

Regular Price

$

368

90

Image for KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

MSRP: $260.00

Regular Price

$

182

00

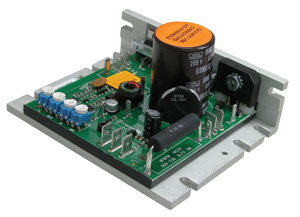

Image for KBWD-16 KB Electronics 6 Amp PWM 115VAC Chassis Drive 8607
