1HP BALDOR 1750RPM 56 TEFC 115VDC COMPOUND WOUND IEEE-45 MOTOR D1154

1HP BALDOR 1750RPM 56 TEFC 115VDC COMPOUND WOUND IEEE-45 MOTOR D1154


Part Number:

D1154

Model/Spec Number:

35P328Z396

Manufacturer:

ABB/Baldor
D1154 BALDOR 1HP Compound Wound IEEE-45 Motor is designed for applications such as cranes and hoists, conveyors, augers and marine duty applications.
MSRP: $3,911.00

Regular Price

USD

$

2,810

71

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

60 lbs

Dimensions:

13 x 22 x 16 inches

HS Code:

8501.31.6000

UPC:

781568124611

Technical Details

Application:

Commercial Duty

Output HP:

1

Output KW:

0.75

Output RPM:

1750

Frame NEMA:

56

Mount NEMA:

With Base

Input Voltage DC:

115

Full Load Amps:

8.0

Field Voltage:

115

Winding:

Compound Wound

D1154-InfoPacket

Baldor Compound Wound IEEE-45 Electric Motors are designed for applications such as cranes and hoists, conveyors, augers and marine duty applications.

Features:

  • 20% compound wound
  • Powered from generators or batteries
  • Not SCR rated
  • Weather proof, VPI insulation meets IEEE 45 specifications
  • Suitable for mounting in any position
  • Continuous duty
  • Ball Bearings
  • Easy access brushes
Image for BP5000T07SP BALDOR DC CARBON BRUSH SET

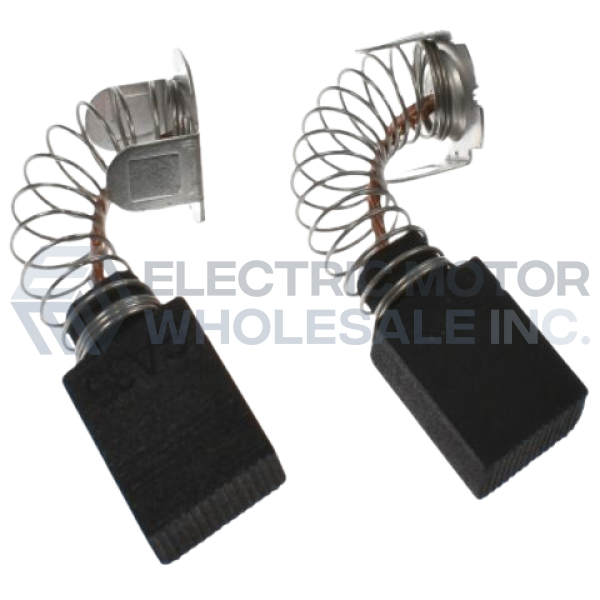

BP5000T07SP BALDOR DC CARBON BRUSH SET

MSRP: $94.00

Regular Price

$

74

00

Image for BP5201A14SP BALDOR BRUSH HOLDER

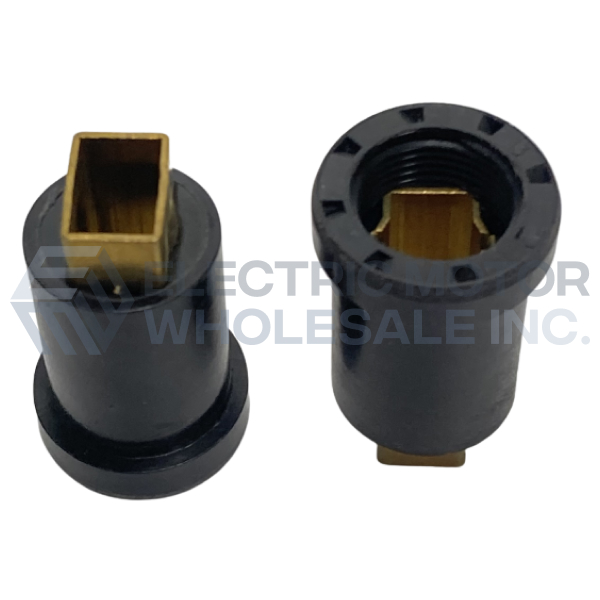

BP5201A14SP BALDOR BRUSH HOLDER
