1/3HP BALDOR 3450RPM D71D TEFC 3PH B5 METRIC IEC MOTOR MVM3457D

1/3HP BALDOR 3450RPM D71D TEFC 3PH B5 METRIC IEC MOTOR MVM3457D


Part Number:

MVM3457D

Model/Spec Number:

33E138-1344G1

Manufacturer:

Baldor Obsolete Motors
MVM3457D BALDOR 1/3HP IEC Frame Motor is designed for Pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC B5 Flange mount replacements.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

24 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501514040

UPC:

781568147146

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

1/3

Output KW:

0.25

Output RPM:

3450

Frame Size IEC:

D71D

Mount IEC:

B5 D Flange

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

IEC Shaft Dia.:

14mm

MVM3457D-InfoPacket

Obsolete 33E138-0426G1

APPLICATIONS: Designed for pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC B5 Flange mount replacements.

FEATURES:

  • IEC-B5 Flange
  • IEC-Standard
  • Conduit box mounted F-2
  • Conforms to IEC 60072-1 and IEC 60034-1.
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings with a locked drive end bearing
  • Heavy-gauge steel frames and gasketed conduit box

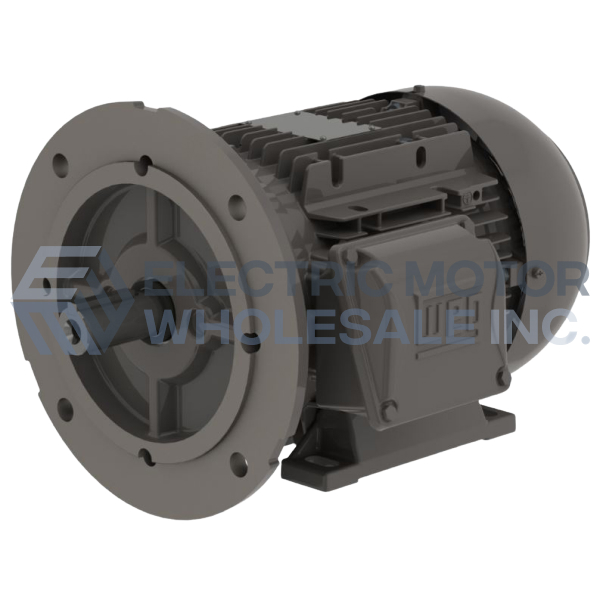

Image for 3/4HP WEG 3420RPM 71 FRAME IP55 B5 IEC TRU-METRIC MOTOR .5536EP3EAL71FF-W22

3/4HP WEG 3420RPM 71 FRAME IP55 B5 IEC TRU-METRIC MOTOR .5536EP3EAL71FF-W22

MSRP: $366.00

Regular Price

$

325

74

Image for Littelfuse SymCom 777-LR-P2 Series MotorSaver.

Littelfuse SymCom 777-LR-P2 Series MotorSaver.

MSRP: $1,243.14

Regular Price

$

767

64

Image for Littelfuse SymCom 460 MotorSaver Protection Relay.

Littelfuse SymCom 460 MotorSaver Protection Relay.

MSRP: $217.59

Regular Price

$

134

36

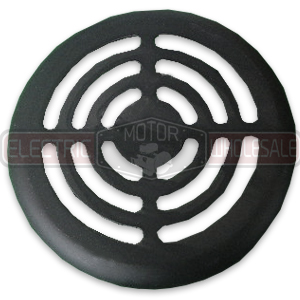

Image for 33FH4000A01 BALDOR Cooling Fan Cover
