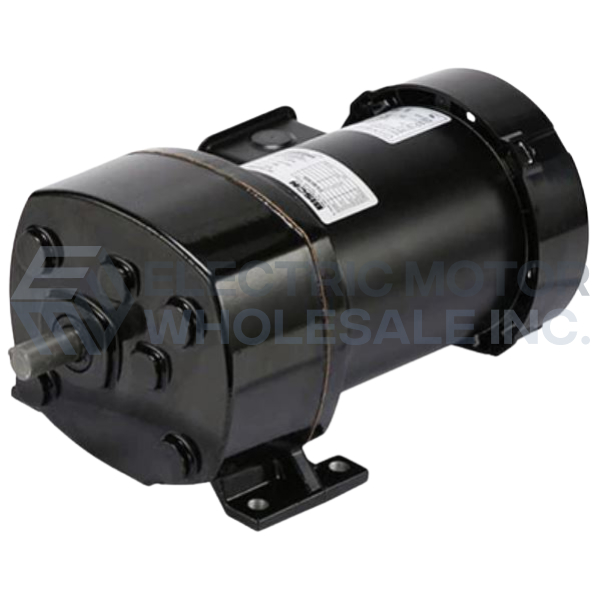

1/3HP BISON 91RPM TEFC 115VAC 480 SERIES PARALLEL GEARMOTOR 014-482-3019
1/3HP BISON 91RPM TEFC 115VAC 480 SERIES PARALLEL GEARMOTOR 014-482-3019
Picture is for reference only.
Part Number:
0144823019Manufacturer:
Bison GearManufacturer Part Number:
014-482-3019This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Free No Rush Shipping
Weight:
30 lbsDimensions:
8 x 16 x 8 inchesHS Code:
8501.40.4020Technical Details
Specifications
Design: | Parallel Shaft |
Input HP: | 1/3 |
Output KW: | 0.25 |
Output RPM: | 91 |
Gear Ratio: | 19:1 |
Torque Lb-In: | 211 |
Overhung Load (lb.): | 571 |
Voltage: | 115 |
Full Load Amperage: | 5.5 |
Frequency (Hz): | 60 |
Documentation
Additional Information
BISON 480 SERIES Single Phase Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 2Z843
FEATURES:
- 3/4" Keyed output shaft
- Gearing: AGMA Class 9 heat treated steel, 1st stage helical, balance spur
- Housing: Precision machined die cast aluminum
- Lubrication: Lifetime oil bath, sealed and gasketed
- Bearings: Needle with and ball on output shaft
- Shafts: Hardened steel
- Mounting: Foot (any angle)
- Motor Type: Split phase
- Rotation: Reversible
- Insulation: Class B minimum
- Finish: Gloss black powder coat
- Enclosure: TEFC
- Included junction box
