1/20HP BISON 43RPM TENV 115VAC 100 SERIES PARALLEL GEARMOTOR 016-101-0037

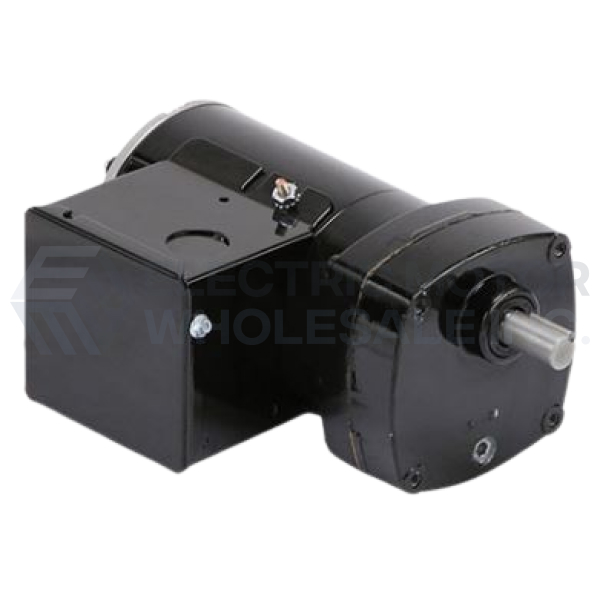

Picture is for reference only.

Part Number:

0161010037

Manufacturer:

Bison Gear

Manufacturer Part Number:

016-101-0037

016-101-0037 BISON 1/20HP 43RPM 100 SERIES Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $688.34

Regular Price

USD

$

550

67

QTY

Login to View Discounts

Shipping Details

Free No Rush Shipping

Weight:

8 lbs

Dimensions:

12 x 16 x 12 inches

HS Code:

8501.40.2020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/20
Output KW:	0.037
Output RPM:	43
Gear Ratio:	36.7:1
Torque Lb-In:	62
Overhung Load (lb.):	160
Voltage:	115
Full Load Amperage:	0.6
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications. FEATURES: 1/2" Keyed output shaft with flat Additional 0.31" rear output shaft with flat Gearing: 1st-stage helical steel, balance powdered metal or steel Housing: Precision machined die cast aluminum Lubrication: Lifetime oil bath, sealed and gasketed Bearings: Needle output Shafts: Hardened steel Mounting: Face or optional footplate (any angle) Motor Type: Permanent split capacitor Rotation: Reversible Insulation: Class B minimum Finish: Gloss black powder coat Enclosure: TENV
