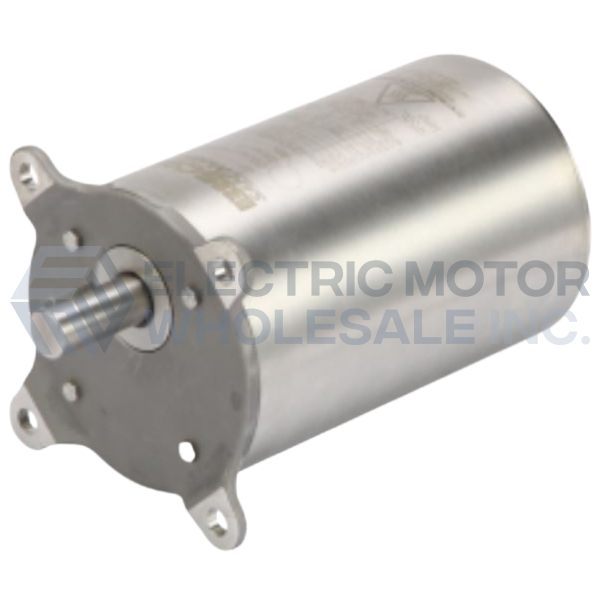

017-261-0005 BISON 1/8HP 345RPM Stainless SaniMotor Gearmotor 0172610005

1/8HP BISON 345RPM TENV 230VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-0005

Part Number:

0172610005

Manufacturer:

Bison Gear

Manufacturer Part Number:

017-261-0005

017-261-0005 BISON 1/8HP 345RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $2,223.10

Regular Price

USD

1,778

Quantity Discounts

QTY 5

$1,538.00ea

QTY

Shipping Details

Free No Rush Shipping

Weight:

23 lbs

Dimensions:

8 x 12 x 8 inches

HS Code:

8501.51.2020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/8
Output KW:	0.093
Output RPM@60hz:	345
Gear Ratio:	5:1
Torque Lb-in.@60hz:	16
Overhung Load (lb.):	130
Voltage AC:	230
Full Load Amp@60hz:	0.5
Frequency (Hz):	6-60

Documentation

Product Information Packet

Additional Information

BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.

FEATURES:

Requires power cord (see related products)
Gearing: Precision machined on automated CNC mills
Geartrain: Engineered to handle up to 200% shock-loading
Housing: 304 stainless steel
Lubrication: High performance grease for food processing
Shafts: 5/8" Keyed 304 Stainless Output Shaft
Mounting: All position
Motor Type: 230VAC, 3 phase Inverter Duty
- 6-60 Hz Constant Torque
- 60-90 Hz Constant Horsepower
Motor Bearings: Sealed ball bearings
Insulation: Class F (155ºC)
Enclosure: TENV
Global safety recognition: UL
Ambient temperature: 0º to 40ºC
Continuous duty
Maximum cable length not to exceed 50ft
