1/7HP BISON 177RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-1010
1/7HP BISON 177RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-1010
Product Overview

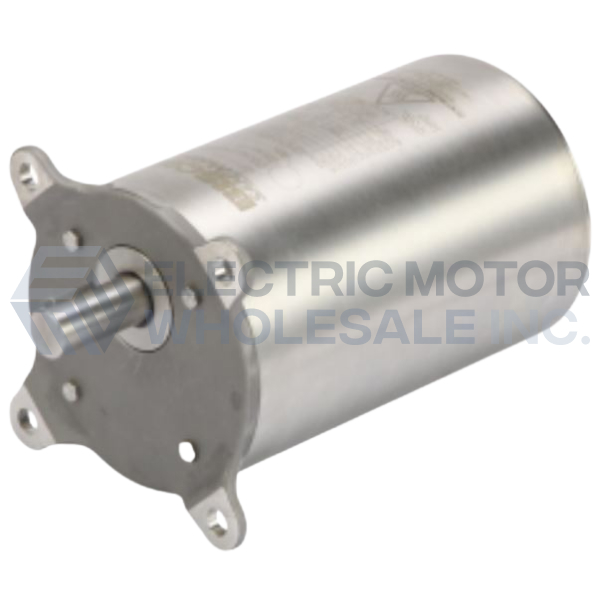

017-261-1010 BISON 1/7HP 177RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.Part Number:
0172611010Model/Spec Number:
017-261-1010Manufacturer:
Bison GearManufacturer Part Number:
017-261-1010Technical Details
Specifications
| Design | Parallel Shaft |
| Input HP | 1/7 |
| Output KW | 0.11 |
| Output RPM@60hz | 177 |
| Gear Ratio | 9.7:1 |
| Torque Lb-in.@60hz | 44 |
Documentation
Additional Information
BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.
FEATURES:
- 30 foot power cable included
- Gearing: Precision machined on automated CNC mills
- Geartrain: Engineered to handle up to 200% shock-loading
- Housing: 304 stainless steel
- Lubrication: High performance grease for food processing
- Shafts: 5/8" Keyed 304 Stainless Output Shaft
- Mounting: All position
- Motor Type: 460VAC, 3 phase Inverter Duty
- 6-60 Hz Constant Torque
- 60-90 Hz Constant Horsepower
- Motor Bearings: Sealed ball bearings
- Insulation: Class F (155ºC)
- Enclosure: TENV
- Global safety recognition: UL
- Ambient temperature: 0º to 40ºC
- Continuous duty
