1/4HP BISON 80RPM TEFC 115/230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 026-756-4420

1/4HP BISON 80RPM TEFC 115/230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 026-756-4420

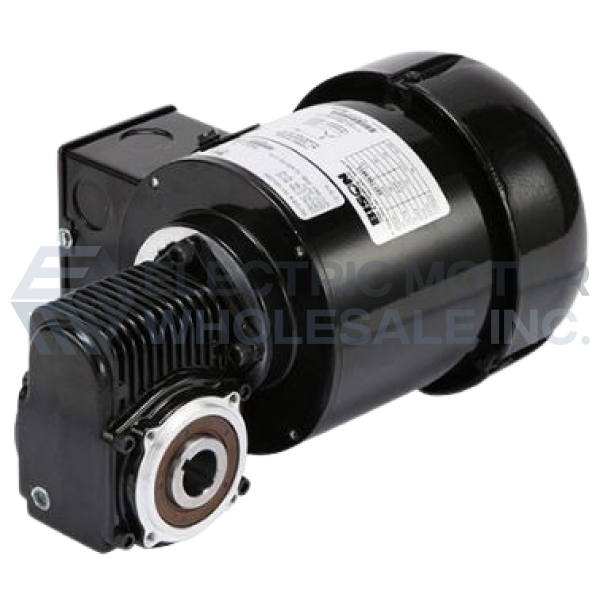

750TEFC HOLLOW.jpg
Picture is for reference only.

Part Number:

0267564420

Manufacturer:

Bison Gear

Manufacturer Part Number:

026-756-4420
026-756-4420 BISON 1/4HP 80RPM 750 SERIES 115/230VAC 1PH Hollow Bore Right Angle Gearmotor for general purpose applications including conveyors, material handling equipment and packaging machinery.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Free No Rush Shipping

Weight:

19 lbs

Dimensions:

8 x 17 x 8 inches

HS Code:

8501.40.4020

Technical Details

Design:

Right Angle Hollow Bore

Input HP:

1/4

Output KW:

0.19

Output RPM:

80

Gear Ratio:

20.5:1

Torque Lb-In:

108

Overhung Load (lb.):

300

Voltage:

115/230

Full Load Amperage:

2.4/1.3

Frequency (Hz):

60//50

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications requiring adjustable speed.

FEATURES:

  • Gearing: Hardened steel worm, forged bronze gear
  • Finish: Gloss black powder coat
  • Housing: Precision machined die cast aluminum
  • Lubrication: Lifetime oil bath, sealed and o-ringed
  • Gearhead Bearings: Ball
  • Shafts: 3/4" Keyed Hollow Bore Output
  • Mounting: All position
  • Motor Type: Permanent split capacitor
  • Rotation: Reversible
  • Motor Bearings: Double shielded ball bearing support
  • Insulation: Class B
  • Enclosure: TEFC
  • Global safety recognition: UL, CUL
  • Duty: Continuous
