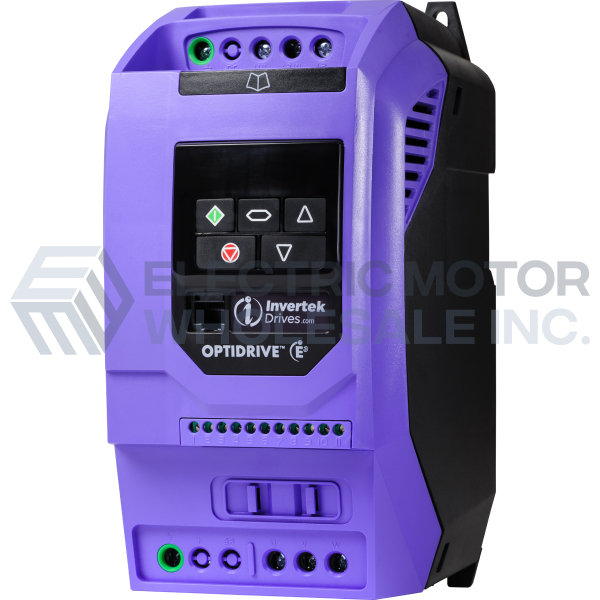

3HP INVERTEK E3 OPTIDRIVE IP20 380-480VAC 3PH INPUT ODE-3-240058-3F42

General Purpose Optidrive E3 provides: unrivaled simplicity of installation, connection and commissioning, allowing the user to benefit from precise motor control and energy savings within minutes.

Simple Commissioning with 14 basic parameters and application macro functions providing rapid set up, Optidrive E3 minimizes start-up time.

Sensor-less Vector Control for all Motor Types: Precise and reliable control for IE2, IE3 & IE4 motors

• IM:IE2 & IE3 Induction Motors
• PM: AC Permanent Magnet Motors
• BLDC: Brushless DC Motors
• SynRM: Synchronous Reluctance Motors

Features:

• Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
• Digital Inputs: 8 – 30 Volt DC, internal or external supply | Response time < 4ms
• Output Frequency: 0 – 500Hz, 0.1Hz resolution Acceleration Time: 0.01 - 600 seconds
• Keypad: Built-in keypad as standard, optional remote mountable keypad
• Display: 7 Segment LED
• PC: OptiTools Studio
• Small mechanical envelope
• Rugged industrial operation
• Fast setup, and simple operation with 14 basic parameters
• Unique motor control strategy optimized for single phase motors
• Motor current and rpm indication
• Built in PI control, EMC filter (C1) & brake chopper
• Application macros for industrial, fan and pump operation
• Bluetooth connectivity

Control Method:

• Sensorless Vector Speed Control
• PM Vector Control
• BLDC Control
• Synchronous Reluctance
