KBWS-22D KB Electronics PWM 2.5A Chassis Drive 9492

Automation Products

DC Motor Drives

KB Electronics DC Drives

KB Electronics 90/180VDC Chassis Drives

KBWS-22D KB Electronics 2.5 Amps SCR 115/230VAC Chassis Drive 90/180VDC Output 9492

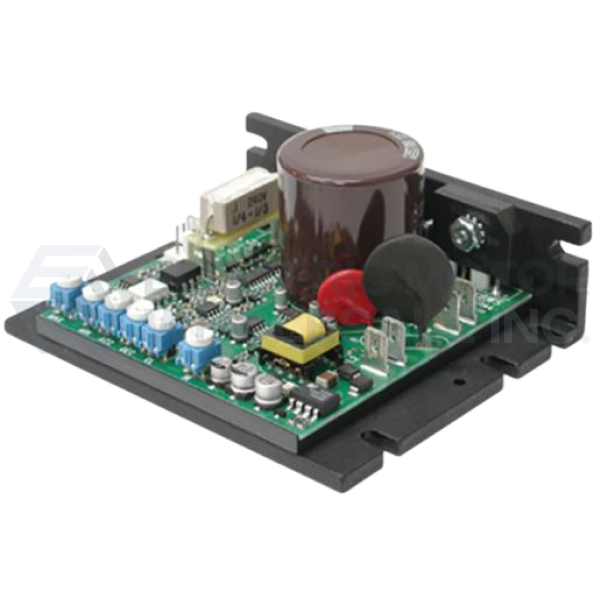

Picture is for reference only.

Part Number:

KB9492

Model/Spec Number:

KBWS-22D

Manufacturer:

KB Electronics

Manufacturer Part Number:

9492

KBWS-22D KB Electronics 9492 PWM (pulse width modulated) 2.5A Chassis Drive with Signal Isolation. Switching frequency greater than 16 kHz to provide high motor efficiency and quiet operation.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Shipping Details

Weight:

1 lb

Dimensions:

6 x 6 x 3 inches

HS Code:

8504.40.4000

Technical Details

Specifications

Drive Type:	PWM
Series:	KBWS
Max HP:	1/3HP@115VAC 3/4HP@230VAC
Output Amperage:	2.5A
Input Voltage:	115/230
Input Phase:	1
Output Voltage:	0-130/0-220VDC
Output Current:	DC
Speed Range:	50:1
Heat Sink:	None

Documentation

KBWA Brochure

KBWS Manual

Additional Information

KBWS PWM (pulse width modulated) controls are designed to operate PWM and SCR rated Permanent Magnet motors ranging up to 2.5 Amps. PWM Drives operate at a switching frequency greater than 16 kHz to provide high motor efficiency and quieter operation. The KBWS contains built-in isolation for all signal inputs. This includes input signal voltage, Main Speed Potentiometer terminals, Inhibit Circuit and +5VDC power supply. Features: Inhibit Circuit: Provides electronic coast-to-stop. Diagnostic LEDs (Power On and Current Limit) AC line inrush current limit protection. Adjustable trimpots (Min Speed, Max Speed, Accel, Decel, Current Limit, IR Compensation) Connector for an Inhibit Switch and AC quick-connect terminals Auto AC Line Select Motor Voltage Selection Requires "Plug-In Horsepower Resistor" (Not included)
