3/4HP LEESON 1725RPM 56C DP 3PH WATTSAVER MOTOR 116762.00

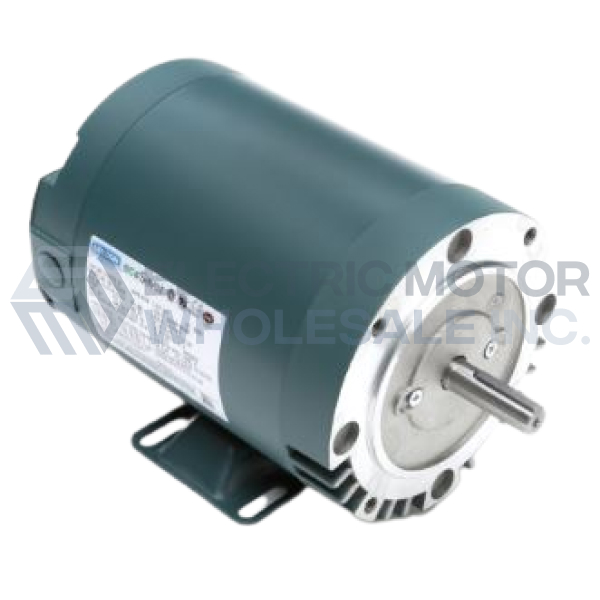

Picture is for reference only.

Part Number:

116762.00

Model/Spec Number:

C6T17DK30

Manufacturer:

Leeson Obsolete

116762.00 LEESON 3/4HP WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

30 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.51.4000

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	3/4
Output KW:	0.55
Output RPM:	1725
Frame Size NEMA:	56C
Mount NEMA:	C-Face with Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	230/460

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	2.4	F.L. Amps	1.2	F.L. Amps	2.7/1.35
S. F Amps	2.8	S. F Amps	1.4	S. F Amps	3/1.5
RPM	1800	Hertz	60/50
HP	3/4	Duty	CONTINUOUS	TYPE	TD
KW	0.55	Model Number	C6T17DK30 A
Frame	56C	Serv. Factor	1.25	Phase	3
Max Amb	40	Design	B	Code	K
Insul Class	F	Protection	AUTOMATIC	Therm.Prot.	9700K46
Eff 100%	81.5	Eff 75%		PF	72
UL	Yes	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	Yes	Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	30 LB	Enclosure	DP	Lubrication	POLYREX EM
Nameplate	080886	Mounting	RIGID C	Rotation	REV
