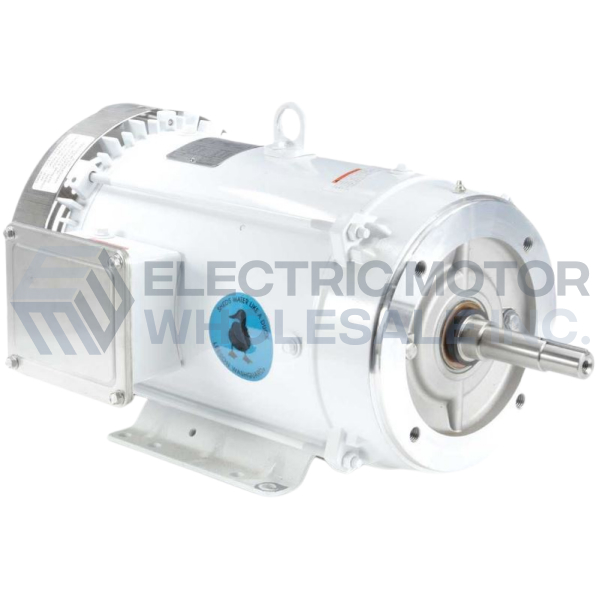

7.5HP LEESON 1765RPM 213JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 141270.00
7.5HP LEESON 1765RPM 213JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 141270.00
Picture is for reference only.
Part Number:
141270.00Model/Spec Number:
141270.00Manufacturer:
Marathon LLCMSRP: $3,111.00
Regular Price
USD
$
2,146
59
Shipping Details
Weight:
135 lbsDimensions:
24 x 33 x 21 inchesHS Code:
8501.52.4000UPC:
691720052136Technical Details
Specifications
Brand: | Leeson |
Application: | Closed Coupled |
Output HP: | 7.5 |
Output KW: | 5.5 |
Output RPM: | 1765 |
Frame Size NEMA: | 213JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 230/460 |
Documentation
Additional Information
LEESON Three Phase White Duck Epoxy Washguard JM Pump Motor is designed for demanding pump applications requiring a JM shaft in wet, humid areas. Designed to meet the industrial washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.
- NEMA Premium efficiency rating with a three year warranty
- The original moisture-shedding "duck" motor
- Durable rolled steel frame with rigid base
- USDA-approved, high-gloss, white epoxy finish
- 303 stainless-steel shaft and moisture-resistant shaft system
- Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds
- High temperature, moisture resistant IRIS® insulation system
- Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware
- Excellent for applications requiring a motor that is "tropicalized"
- Double-sealed, oversized bearings
- Stainless-steel or white polypropylene fan guard on all Washguard frames.
- Stainless-steel, “full-fact” nameplate
- Four condensate drains in each endshield
