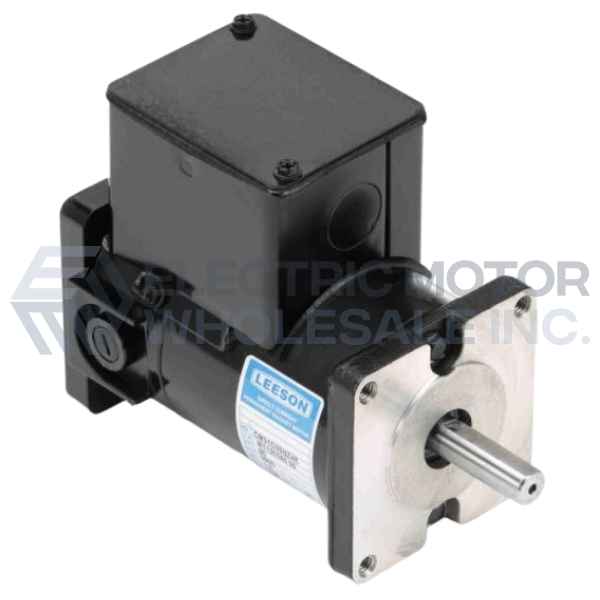

M1120046.00 LEESON 1/6HP 12-24VDC MOTOR M31D17NZ26

1/6HP LEESON 1800RPM 31 TENV 12VDC MOTOR M1120046.00

Part Number:

M1120046.00

Model/Spec Number:

M31D17NZ26

Manufacturer:

Regal Rexnord Commercial

M1120046.00 LEESON 1/6HP SUB-FHP DC MOTOR is a precision sub-fractional horsepower low voltage direct current permanent magnet motors designed for battery or solar powered operations. High starting torques and reversible throughout the speed range.

MSRP: $842.00

Regular Price

USD

351

QTY

Shipping Details

Weight:

9 lbs

Dimensions:

8 x 16 x 7 inches

HS Code:

8501.31.4000

UPC:

691720090848

Technical Details

Specifications

Application:	General Purpose
Output HP:	0.17-0.33
Output KW:	0.13-0.25
Output RPM:	1800-3900
Frame NEMA:	31
Mount NEMA:	Square Flange
Input Voltage DC:	12-24
Full Load Amps:	14.0
Winding:	Permanent Magnet
Enclosure NEMA:	TENV

Documentation

Product Information Packet

Additional Information

LEESON SUB-FHP Low Voltage DC Motors are precision sub-fractional horsepower low voltage direct current permanent magnet motors designed for battery or solar powered operations, or generator supplied low voltage DC. Mechanical

Mechanical Features: Compact space saving designs. Standard conduit box simplifies connections. Ball bearings. Long-life brushes for demanding applications. Brushes easily replaced without dis-assembly of motor.

Electrical Features: High starting torques for heavy load applications. Linear speed/torque characteristics over entire speed range. Capable of dynamic braking for faster stops. Reversible rotation from a simple two lead connection. Class F insulated with high temperatures welded commutators.
