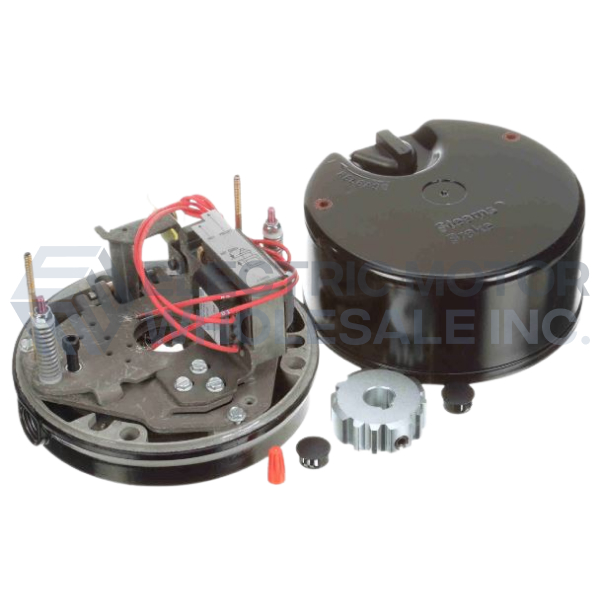

10FT-LB MARATHON 56000 SERIES NEMA2 575VAC BRAKE A316

10FT-LB MARATHON 56000 SERIES NEMA2 575VAC BRAKE A316


Part Number:

A316

Manufacturer:

Regal Beloit Parts

Manufacturer Part Number:

BM10BRK575
MARATHON A316 Stearns 56000 Brake Kit fits on both Black Max and Blue Max TENV motors. This can also be used together with the Double C-Face SL56 encoder to make a closed loop inverter brake motor.
MSRP: $1,609.00

Regular Price

USD

$

719

00

QTY
Login to View Discounts

Weight:

11 lbs

Dimensions:

10 x 10 x 8 inches

HS Code:

8503.00.5000

UPC:

722856045591

Technical Details

Stearns Series:

56000

Static Torque Lb.-ft.:

10

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

B: 5/8"

Input Frame Size:

56C

Coil Voltage AC:

575//480

Coil Hz:

60//50

Release:

Turn Release

These brake kits fit on both Black Max® and Blue Max® TENV motors. This can also be used together with the Double C-Face SL56 encoder to make a closed loop inverter brake motor. For normal (140%) torque rating, do not apply on motors larger than 2 HP. Reduced braking torque and/or longer stopping times can result from applying an undersized brake on higher HP motors.

Image for K4 STEARNS Injection Molded 575VAC Class-B Coil 566645533

K4 STEARNS Injection Molded 575VAC Class-B Coil 566645533

MSRP: $359.00

Regular Price

$

138

00

Image for #4 STEARNS 56000 Series REV-B AC Solenoid Kit 596504201

#4 STEARNS 56000 Series REV-B AC Solenoid Kit 596504201

MSRP: $392.87

Regular Price

$

212

80

Image for STEARNS 56000 Series REV-B 1-Friction Disc 566846200

STEARNS 56000 Series REV-B 1-Friction Disc 566846200

MSRP: $233.59

Regular Price

$

122

53

Image for STEARNS 56000 Series Vertical Mount 3-Disc Kit 566835600

STEARNS 56000 Series Vertical Mount 3-Disc Kit 566835600

MSRP: $362.20

Regular Price

$

196

20

Image for STEARNS 56000 Series REV-B 2-Friction & Disc Kit 566860200

STEARNS 56000 Series REV-B 2-Friction & Disc Kit 566860200

MSRP: $663.03

Regular Price

$

359

16

Image for 10FT-LB STEARNS 56000 Series REV-B NEMA2 Support Plate 54256070004

10FT-LB STEARNS 56000 Series REV-B NEMA2 Support Plate 54256070004

MSRP: $545.06

Regular Price

$

246

00

Image for STEARNS 56000 Series IP23 Brake Housing with Release Knob 566875600

STEARNS 56000 Series IP23 Brake Housing with Release Knob 566875600

MSRP: $178.14

Regular Price

$

99

09
