6FT-LB MARATHON 56000 SERIES NEMA2 115/208-230VAC BRAKE A317

6FT-LB MARATHON 56000 SERIES NEMA2 115/208-230VAC BRAKE A317


Part Number:

A317

Model/Spec Number:

105602100041

Manufacturer:

Regal Beloit Parts

Manufacturer Part Number:

BM6BRK115

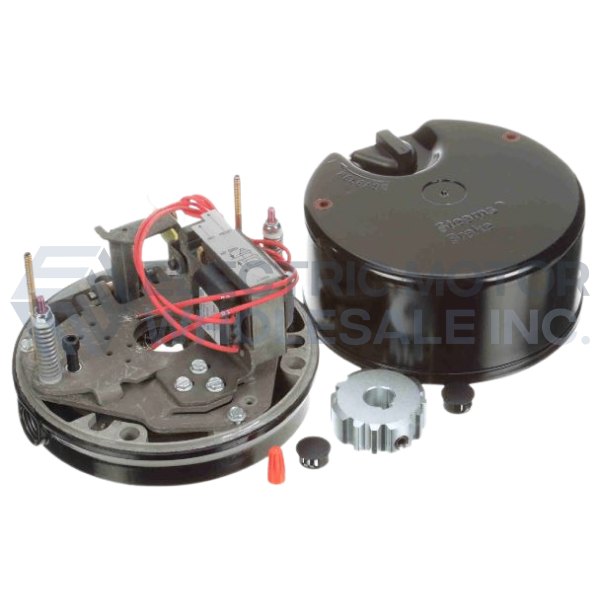

105602100041 MARATHON A317 Stearns 56000 Brake Kit fits on both Black Max and Blue Max TENV motors. This can also be used together with the Double C-Face SL56 encoder to make a closed loop inverter brake motor.
MSRP: $1,378.00

Regular Price

USD

$

616

00

QTY
Login to View Discounts

Weight:

12 lbs

Dimensions:

10 x 10 x 6 inches

HS Code:

8503.00.5000

UPC:

722856045607

Technical Details

Stearns Series:

56000

Static Torque Lb.-ft.:

6

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

B: 5/8"

Coil Voltage AC:

115/208-230//95/190

Coil Hz:

60//50

Release:

Turn Release

Endplate Material:

Aluminum

These Stearns brake kits fit on both Black Max® and Blue Max® TENV motors. This can also be used together with the Double C-Face SL56 encoder to make a closed loop inverter brake motor. For normal (140%) torque rating, do not apply on motors larger than 2 HP. Reduced braking torque and/or longer stopping times can result from applying an undersized brake on higher HP motors.
