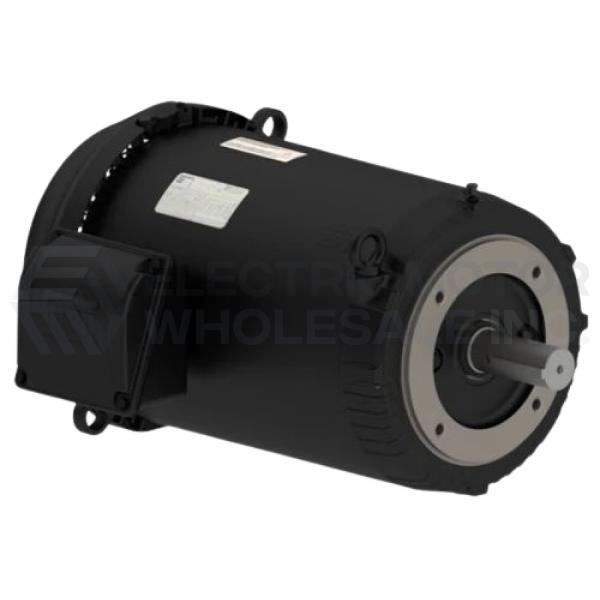

C227B MARATHON 15HP THREE PHASE XRI GENERAL PURPOSE MOTOR 254TTFL16039

15HP MARATHON 1775RPM 254TC TEFC 3PH MOTOR C227B

Part Number:

C227B

Model/Spec Number:

254TTFL16039

Manufacturer:

Marathon BTO

C227B MARATHON 15HP Three Phase Totally Enclosed General Purpose Rigid Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Ordering Notes

Motor is “Build to order”. Average build time estimated 6-12 weeks ARO. Once ordered, the motor is non-cancellable and non-returnable.

MSRP: $2,499.00

Regular Price

USD

1,524

QTY

Shipping Details

Weight:

261 lbs

Dimensions:

29 x 37 x 27 inches

HS Code:

8501.52.8040

UPC:

722856050557

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	15//10
Output KW:	11.2//7.5
Output RPM:	1775//1478
Frame Size NEMA:	254TC
Mount NEMA:	C Face No Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	230/460//190/380

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose use on gear reducers, pumps, machine tools, and other
direct-coupled equipment installed in damp, dusty, or dirty environments. Additionally, cast iron frame motors may be suitable for the process industries.

FEATURES:

Ball bearings, mechanically locked on shaft end
Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
Motor will not accept a brake kit

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
