213TTGND16027 MARATHON 7.5HP EXPLOSION PROOF SEVERE DUTY MOTOR C325C

Electric Motors

Three Phase Electric Motors

Marathon Electric Motors Three Phase

Marathon Three Phase Explosion Proof Motors

Marathon Three Phase Severe Duty Explosion Proof Motors

7.5HP MARATHON 1765RPM 213TC EPFC 3PH EXPLOSION PROOF CHEM DUTY MOTOR C325C

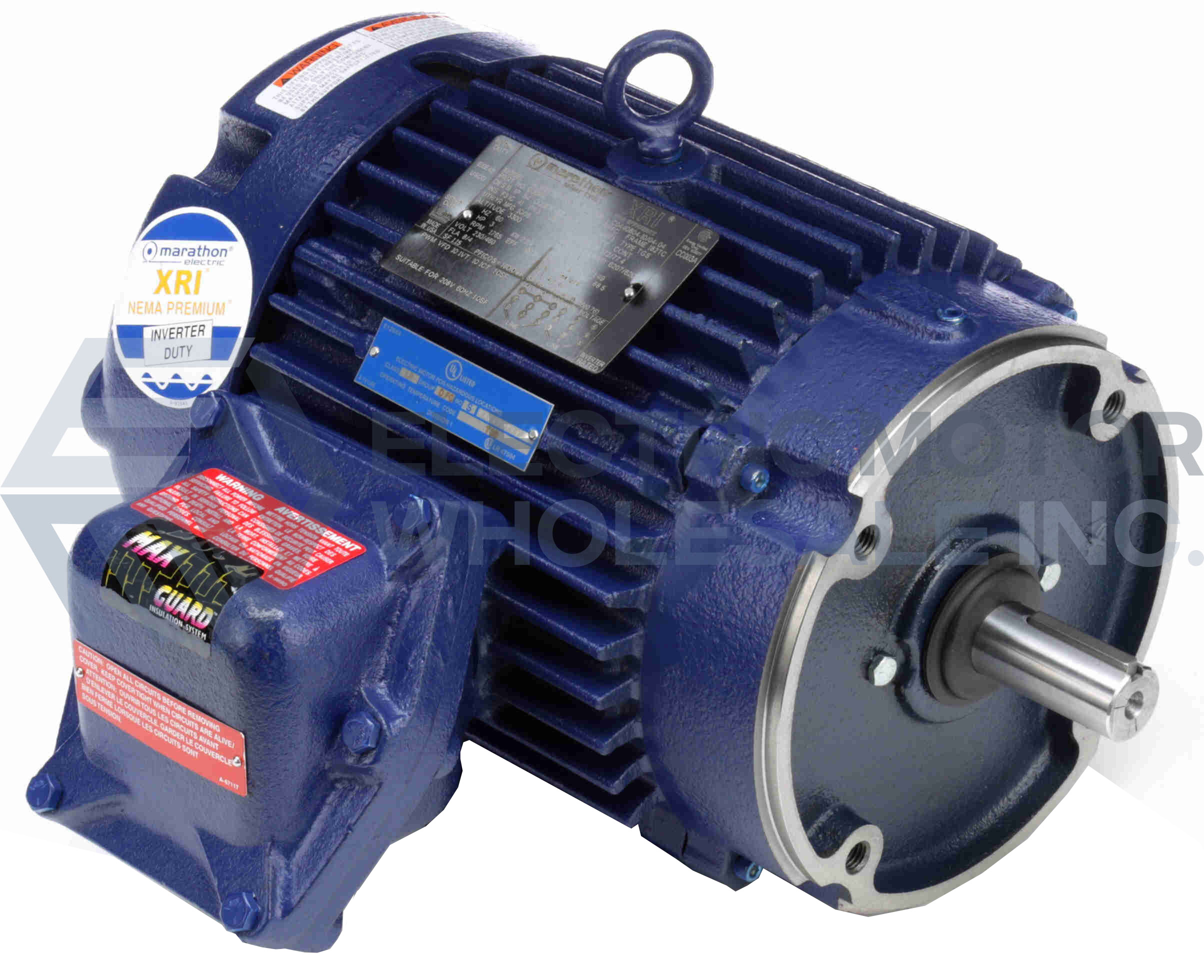

Picture is for reference only.

Part Number:

C325C

Model/Spec Number:

213TTGND16027

Manufacturer:

Marathon LLC

C325C MARATHON 7.5HP Three Phase Blue Chip Severe Duty Explosion Proof Premium Motor is designed and approved for application in hazardous environments having certain explosive gases or materials present.

MSRP: $2,756.00

Regular Price

USD

1,583

QTY

Shipping Details

Weight:

291 lbs

Dimensions:

20 x 27 x 18 inches

HS Code:

8501.52.4000

UPC:

722856066633

Technical Details

Specifications

Brand:	Marathon
Application:	XP Severe Duty
Output HP:	7.5
Output KW:	5.6
Output RPM:	1765
Frame Size NEMA:	213TC
Mount NEMA:	C Face No Base
Enclosure NEMA:	EPFC
Enclosure IEC:	IP54
Voltage:	230/460//190/380

Documentation

C325C Data Sheet

Explosion-Proof-Definitions

Additional Information

APPLICATIONS: Designed and approved for application in hazardous environments having certain explosive gases or materials present.

FEATURES:

1.0 Service Factor
Explosion proof conduit box included, shipped loose
UL Listed File No. E12044
CSA Certified File No. LR47504

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays.
