1/3HP MARATHON 1700RPM 71 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R304

1/3HP MARATHON 1700RPM 71 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R304


Part Number:

R304

Model/Spec Number:

071T17FH5326

Manufacturer:

Regal IEC
R304 MARATHON 1/3HP Globetrotter B3 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

This Marathon motor is being discontinued and quantities are limited.  Please call for availability before ordering.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

18 lbs

Dimensions:

10 x 14 x 12 inches

HS Code:

8501.51.4040

UPC:

722856026187

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

1/3

Output KW:

0.25

Output RPM:

1700//1380

Frame Size IEC:

71

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

14mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked

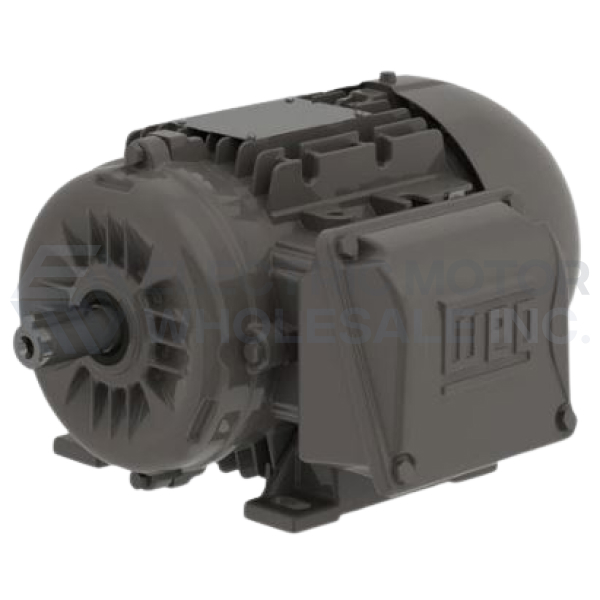

Image for 1/3HP WEG 1730RPM 71 FRAME IP55 B3 IEC TRU-METRIC MOTOR .2518EP3EAL71-W22

1/3HP WEG 1730RPM 71 FRAME IP55 B3 IEC TRU-METRIC MOTOR .2518EP3EAL71-W22

MSRP: $282.00

Regular Price

$

250

98

Image for A570 MARATHON 71 B5 FLANGE MOUNTING KIT

A570 MARATHON 71 B5 FLANGE MOUNTING KIT

MSRP: $174.00

Regular Price

$

38

00

Image for A562 MARATHON 71 B14 FLANGE MOUNTING KIT

A562 MARATHON 71 B14 FLANGE MOUNTING KIT

MSRP: $140.00

Regular Price

$

40

00

Image for 1/3HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500A01P6B2NB20G2

1/3HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500A01P6B2NB20G2

MSRP: $456.00

Regular Price

$

275

42

Image for 1/2HP WEG CFW500 SERIES IP20 VFD 460VAC 3PH INPUT CFW500A01P0T4NB20G2

1/2HP WEG CFW500 SERIES IP20 VFD 460VAC 3PH INPUT CFW500A01P0T4NB20G2

MSRP: $582.00

Regular Price

$

351

53

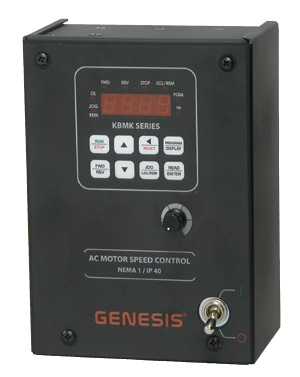

Image for 1/8-1HP KBMK-24DF NEMA1 VFD 115/230VAC 1PH INPUT 9681
