1/4HP LEESON 1800RPM 63 B34 IP55 3PH IEC MOTOR R361

1/4HP LEESON 1800RPM 63 B34 IP55 3PH IEC MOTOR R361

63 B3B14.jpg
Picture is for reference only.

Part Number:

R361

Model/Spec Number:

063T17FH5402

Manufacturer:

Regal IEC
R361 LEESON 1/4HP B34 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Non returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $875.00

Regular Price

USD

$

311

00

QTY
Login to View Discounts

Weight:

16 lbs

Dimensions:

10 x 13 x 12 inches

HS Code:

8501.51.4040

UPC:

722856027030

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1/4

Output KW:

0.19

Output RPM:

1700//1380

Frame Size IEC:

63C

Mount IEC:

B3/B14 Foot/C-Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

11mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked
Image for A561 LEESON 63 FRAME B14 FLANGE MOUNTING KIT

A561 LEESON 63 FRAME B14 FLANGE MOUNTING KIT

MSRP: $128.00

Regular Price

$

58

00

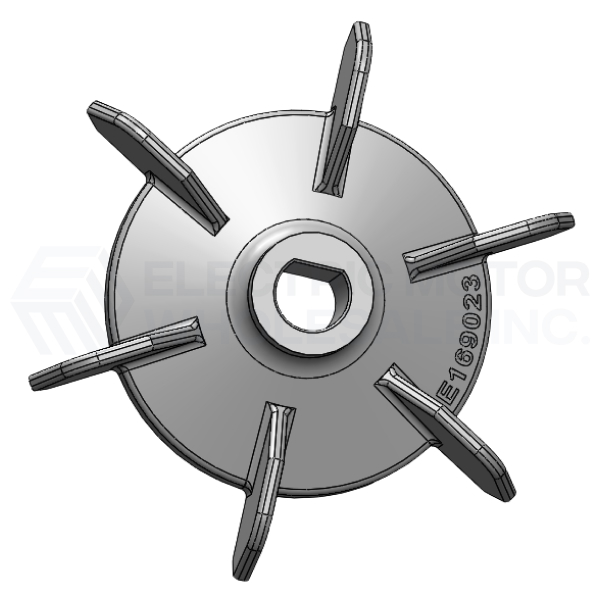

Image for E169022.00 LEESON IEC 63 Frame External Cooling Fan

E169022.00 LEESON IEC 63 Frame External Cooling Fan

MSRP: $34.00

Regular Price

$

28

00

Image for 1/4HP Worldwide 1800RPM 63 Frame B34 IP55 3PH Aluminum IEC Motor IEC14-18-63-C

1/4HP Worldwide 1800RPM 63 Frame B34 IP55 3PH Aluminum IEC Motor IEC14-18-63-C

MSRP: $530.86

Regular Price

$

283

10

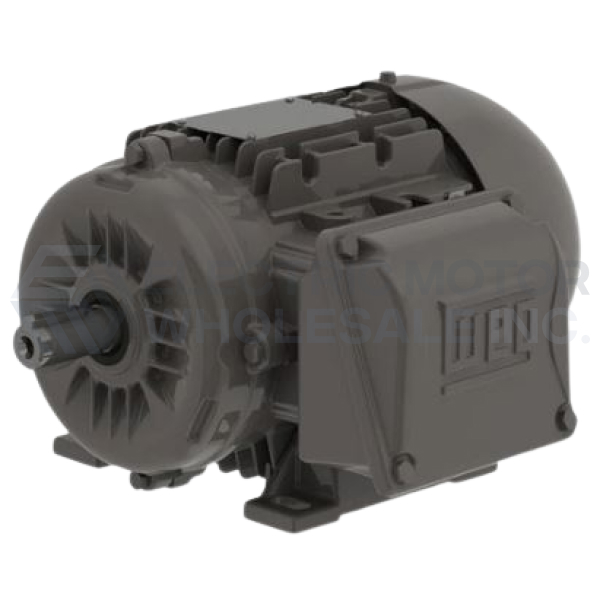

Image for 1/4HP WEG 1710RPM 63 FRAME IP55 B3 IEC TRU-METRIC MOTOR .1818EP3EAL63-W22
