1.5HP MARATHON 3450RPM 80 B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R375

1.5HP MARATHON 3450RPM 80 B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R375

71 B3 B14.jpg

Part Number:

R375

Model/Spec Number:

080T34FH5416

Manufacturer:

Regal IEC
R375 MARATHON 1.5HP Globetrotter B3/B14 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Non-Returnable

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

32 lbs

Dimensions:

12 x 16 x 13 inches

HS Code:

8501.52.4000

UPC:

722856027177

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450//2850

Frame Size IEC:

80

Mount IEC:

B3/B14 Foot/C-Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

19mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked
Image for 1.5HP Worldwide 3600RPM 80 Frame B34 IP55 3PH Aluminum IEC Motor IEC1.5-36-80-C

1.5HP Worldwide 3600RPM 80 Frame B34 IP55 3PH Aluminum IEC Motor IEC1.5-36-80-C

MSRP: $786.77

Regular Price

$

419

57

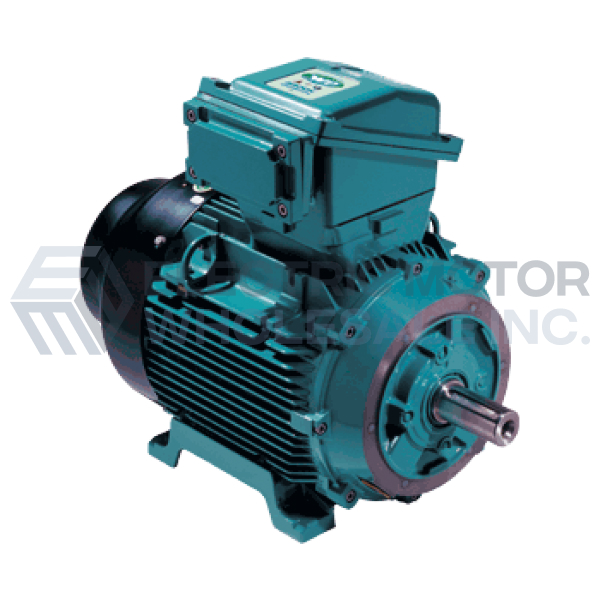

Image for 1.5HP BROOK CROMPTON 3600RPM 80C B14 230/460V 3PH IEC MOTOR BA2M1.5V4C

1.5HP BROOK CROMPTON 3600RPM 80C B14 230/460V 3PH IEC MOTOR BA2M1.5V4C

MSRP: $503.00

Regular Price

$

347

00

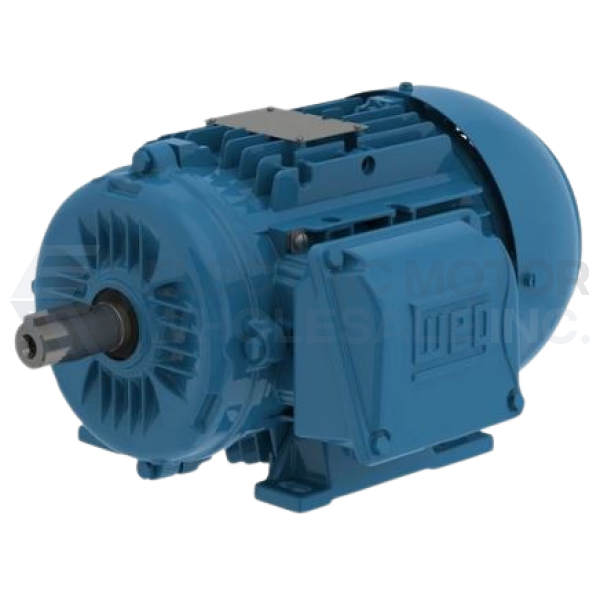

Image for 1.5HP WEG 3465RPM 80 FRAME IP55 B3 IEC TRU-METRIC MOTOR 00136ET3EAL80-W22
