3HP MARATHON 3500RPM 90L B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R379A

3HP MARATHON 3500RPM 90L B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R379A

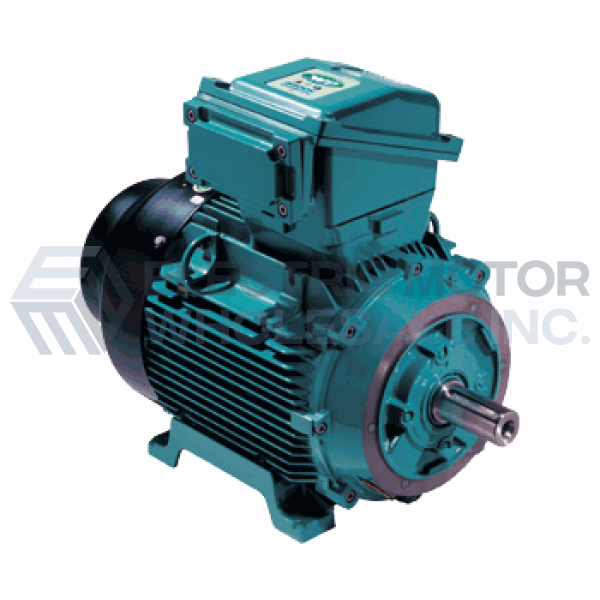

71 B3 B14.jpg

Part Number:

R379A

Model/Spec Number:

090LT34FH6420

Manufacturer:

Regal IEC
R379A MARATHON 3HP Globetrotter B3/B14 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

45 lbs

Dimensions:

14 x 19 x 15 inches

HS Code:

8501.52.4000

UPC:

722856027214

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

3500//2875

Frame Size IEC:

90L

Mount IEC:

B4/B14 Foot/C-Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

25mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked
