3HP MARATHON 1755RPM 182TC 575V TENV 3PH MOTOR Y558A
3HP MARATHON 1755RPM 182TC 575V TENV 3PH MOTOR Y558A
Product Overview

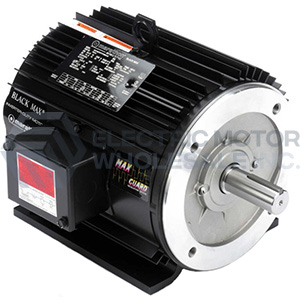

Y558A MARATHON 3HP Three Phase Black Max Inverter (Vector) Duty motor is designed for use with material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.Part Number:
Y558AModel/Spec Number:
182THTY7736Manufacturer:
Marathon LLCManufacturer Part Number:
Y558ATechnical Details
Specifications
| Brand | Marathon |
| Application | Vector Duty |
| Output HP | 3 |
| Output KW | 2.2 |
| Output RPM | 1755 |
| Frame Size NEMA | 182TC |
Documentation
Additional Information
APPLICATIONS: Designed for inverter or vector applications where up to a 1000:1 Constant Torque speed range is required. Typical uses include: material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.
FEATURES:
- MAX GUARD® Class F insulation system
- Constant Torque operation from 0 to base speed on Vector Drive
- Constant Horsepower operation up to twice base RPM
- Continuous duty at 40ºC ambient
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, Class F)
- Ball Bearings
- Field Reversible to F2
- UL Recognized, CSA Certified, and CE Mark
