1.5FT-LB STEARNS 56000 Series NEMA2 Brake No-Hub

/

1.5FT-LB STEARNS 56000 Series NEMA2 115VAC No Hub Brake 105600100-BF

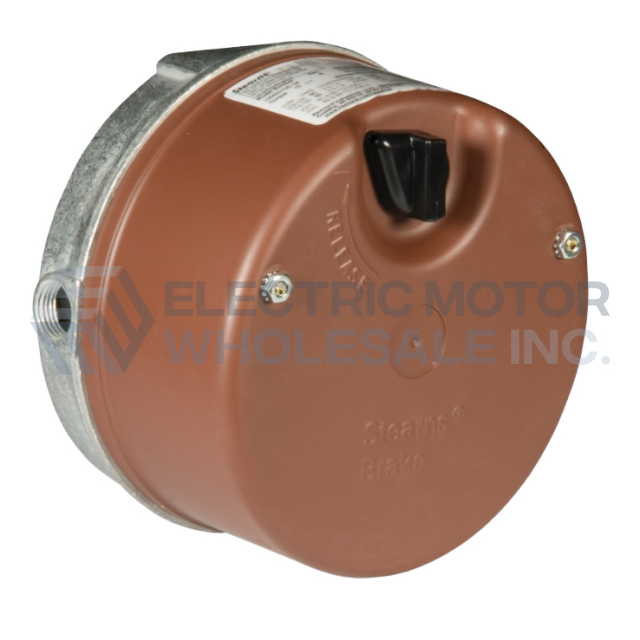

1.5FT-LB STEARNS 56000 Series NEMA2 115VAC No Hub Brake 105600100-BF

Picture is for reference only.

Part Number:

105600100 BF

Model/Spec Number:

1-056-001-00-BF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

105600100 BF
1-056-001-00-BF STEARNS 1.5 FT-LB NEMA2 115VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

9 lbs

Dimensions:

9 x 9 x 6 inches

HS Code:

8505.20.0000

UPC:

662327969424

Technical Details

Stearns Series:

56000

Static Torque Lb.-ft.:

1.5

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

Not Included

Coil Voltage AC:

115//95

Coil Hz:

60//50

Release:

Turn Release

Endplate Material:

Aluminum

56000 Product Packet.pdf

STEARNS NEMA2 Motor Mounting Brake

  • Die cast aluminum endplate with stamped steel housing
  • Hub not included
  • Stearns brakes are designed for high performance applications
  • Spring-Set Electronically Released
  • Adjustable Torque down to 50% of rated nameplate torque
  • Manual Wear Adjustment
