330FT-LB Stearns 82300 Series IP56 230/460VAC Motor Mount Brake 108234400JQC

330FT-LB Stearns 82300 Series IP56 230/460VAC Motor Mount Brake 108234400JQC

Picture is for reference only.

Part Number:

108234400JQC

Model/Spec Number:

1-082-344-00-JQC

Manufacturer:

Stearns Brakes
1-082-344-00-JQC STEARNS 330 Ft-LB Motor Mount Brake is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 15-60 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

310 lbs

Dimensions:

34 x 32 x 22 inches

HS Code:

8505.20.0000

UPC:

662864831628

Technical Details

Stearns Series:

82300

Static Torque Lb.-ft.:

330

Coil Size:

#9

Enclosure NEMA:

NEMA7, NEMA9

Enclosure IEC:

IP56

Hub Bore Dia.:

J: 2-1/2"

Coil Voltage AC:

230/460//190/380

Coil Hz:

60//50

Release:

Side Release

Endplate Material:

Cast Iron

82300 Product Packet

STEARNS 82300 Series IP56 Hazardous Location Motor Mounted Brake is used for mounting close coupled (directly) to the motor end bell. Features: Self-Adjusting Design Spring-Set Electrically Released Coil Insulation: Class-H Standard Lead Wire Length: 36 inches Certified UL Listed, File E-14893 for Class I, Group C and D Class II, Group E and F and G. ABS Type Approval Certified
Image for #9 STEARNS Injection Molded 230/460VAC Class-H Coil 596692981

#9 STEARNS Injection Molded 230/460VAC Class-H Coil 596692981

MSRP: $1,743.00

Regular Price

$

1,006

72

Image for #9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

#9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

MSRP: $1,280.78

Regular Price

$

730

56

Image for STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

Image for STEARNS 82300 Series Splined Heavy Duty Friction Disc 566841100

STEARNS 82300 Series Splined Heavy Duty Friction Disc 566841100

MSRP: $1,399.22

Regular Price

$

798

11

Image for STEARNS 82300 Series Horizontal 2 Disc Pressure Plate 800511301

STEARNS 82300 Series Horizontal 2 Disc Pressure Plate 800511301

MSRP: $2,639.16

Regular Price

$

1,505

37

Image for 330FT-LB STEARNS 82300 Series AC Support Plate Assembly 54210250042

330FT-LB STEARNS 82300 Series AC Support Plate Assembly 54210250042

Image for STEARNS 82300 Series 125-330FT-LB Cast Iron Endplate 55011010030C

STEARNS 82300 Series 125-330FT-LB Cast Iron Endplate 55011010030C

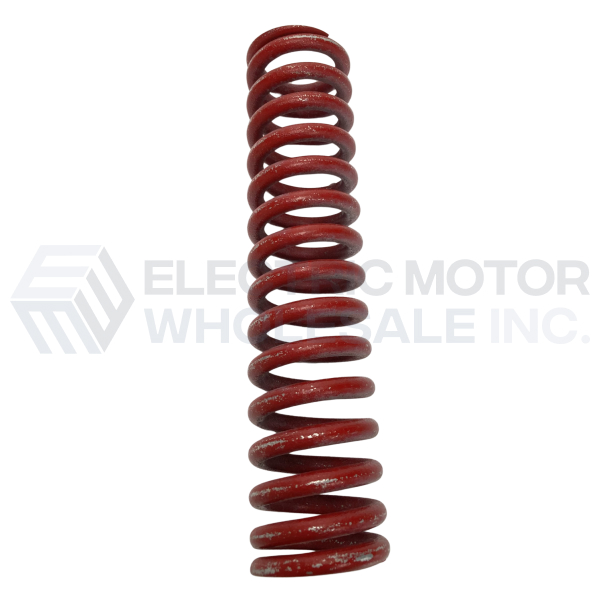

Image for STEARNS 82000 Series Pressure Spring Red 970580100

STEARNS 82000 Series Pressure Spring Red 970580100

MSRP: $289.04

Regular Price

$

164

87

Image for STEARNS 82000/86000 Series RH Stainless Lever Solenoid Pinion 596738200

STEARNS 82000/86000 Series RH Stainless Lever Solenoid Pinion 596738200

Image for STEARNS 81000/82000 Series Lever Arm 517200100

STEARNS 81000/82000 Series Lever Arm 517200100

MSRP: $736.19

Regular Price

$

419

93

Image for STEARNS 82300 Series Cast Iron Side Release Housing 507101100

STEARNS 82300 Series Cast Iron Side Release Housing 507101100
