25FT-LB STEARNS 87000 Series IP54 575VAC No Hub Brake 108703400-NF

25FT-LB STEARNS 87000 Series IP54 575VAC No Hub Brake 108703400-NF

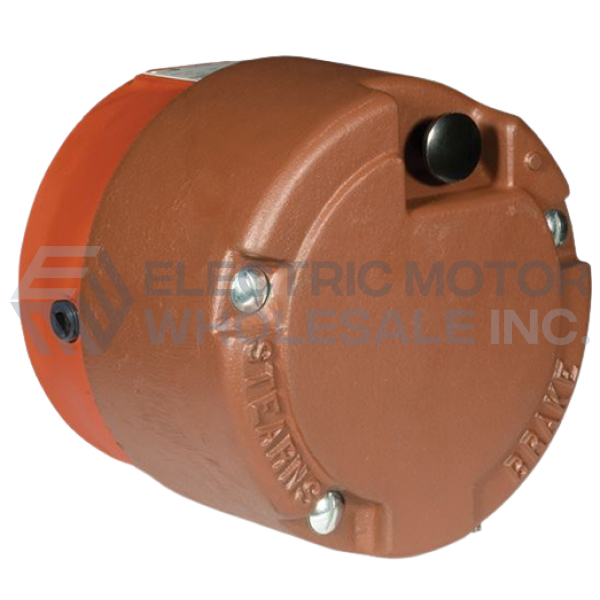

Picture is for reference only.

Part Number:

108703400 NF

Model/Spec Number:

1-087-034-00-NF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108703400 NF
1-087-034-00-NF STEARNS 25FT-LB 87000 Series IP54 Aluminum Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but 20-35 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

20 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

25

Coil Size:

#6

Enclosure NEMA:

NEMA4X

Enclosure IEC:

IP54

Hub Bore Dia.:

No Hub Provided

Coil Voltage AC:

575//480

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake FEATURES: Die cast aluminum endplate with stamped steel housing Self-Adjusting Design Hub Not Included Lead Wire Length: 24 inches Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required Coil Insulation: Class H Standard Certified: CSA File LR-6254 ABS Type Approval Certified
