35FT-LB STEARNS 87000 Series NEMA2 230/460VAC No Hub Brake 108704100-QF

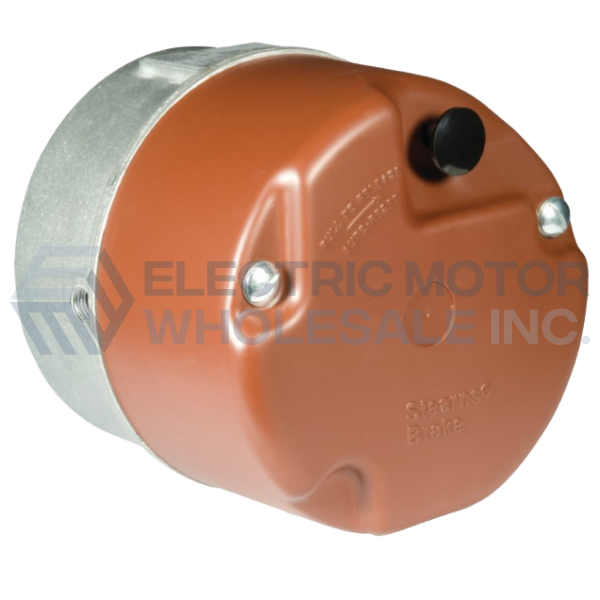

35FT-LB STEARNS 87000 Series NEMA2 230/460VAC No Hub Brake 108704100-QF


Part Number:

108704100 QF

Model/Spec Number:

1-087-041-00-QF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108704100 QF
1-087-041-00-QF STEARNS 35 Ft-LB NEMA2 230/460VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 10-15 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

MSRP: $1,428.89

Regular Price

USD

$

1,224

10

QTY
Login to View Discounts

Weight:

24 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

662327170288

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

35

Coil Size:

#8

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

Not Included

Coil Voltage AC:

230/460//190/380

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Hub Not Included
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
