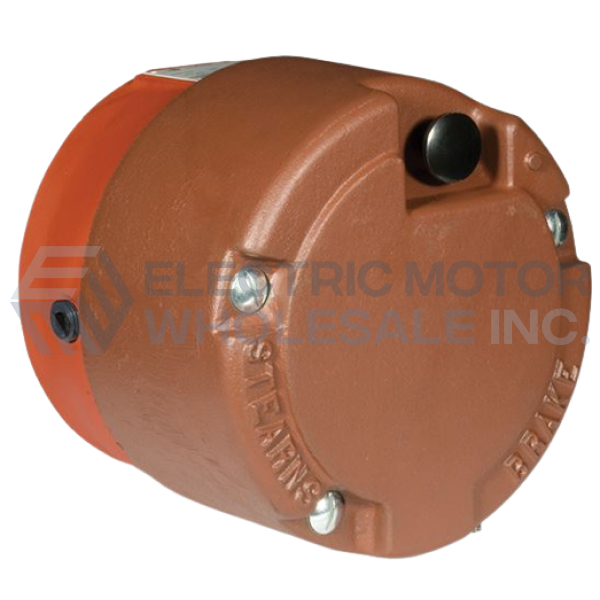

35FT-LB STEARNS 87000 Series IP54 230/460VAC No Hub Brake 108704400-QF

35FT-LB STEARNS 87000 Series IP54 230/460VAC No Hub Brake 108704400-QF


Part Number:

108704400 QF

Model/Spec Number:

1-087-044-00-QF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108704400 QF
1-087-044-00-QF STEARNS 35FT-LB 87000 Series IP54 Aluminum Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 15-25 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $1,690.80

Regular Price

USD

$

1,448

48

QTY
Login to View Discounts

Weight:

24 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

793699091373

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

35

Coil Size:

#8

Enclosure NEMA:

NEMA4X

Enclosure IEC:

IP54

Hub Bore Dia.:

No Hub Provided

Coil Voltage AC:

230/460//190/380

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Hub Not Included
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
