STEARNS 82000 Series Genuine Replacement Parts

/

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

Picture is for reference only.

Part Number:

54220770042

Model/Spec Number:

5-42-2077-00-42

Manufacturer:

Stearns Parts
5-42-2077-00-42 STEARNS 82000 Series AC Support Plate Assembly

Ordering Notes

This Stearns Product is Non-Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

35 lbs

Dimensions:

14 x 16 x 16 inches

HS Code:

8505.90.7501

UPC:

662327210250

Technical Details

Stearns Series:

82000

Static Torque Lb.-ft.:

330, 440, 550

Coil Size:

#K9

Enclosure NEMA:

NEMA4, NEMA2

Enclosure IEC:

IP23, IP54

Coil Voltage AC:

AC ALL

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Cast Iron

Mount Orientation:

Horizontal

82000 Product Packet

Image for #8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

#8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

MSRP: $40.11

Regular Price

$

33

22

Image for #8 & #9 STEARNS Bronze Plunger Guide (EACH) 808258100

#8 & #9 STEARNS Bronze Plunger Guide (EACH) 808258100

MSRP: $82.58

Regular Price

$

54

98

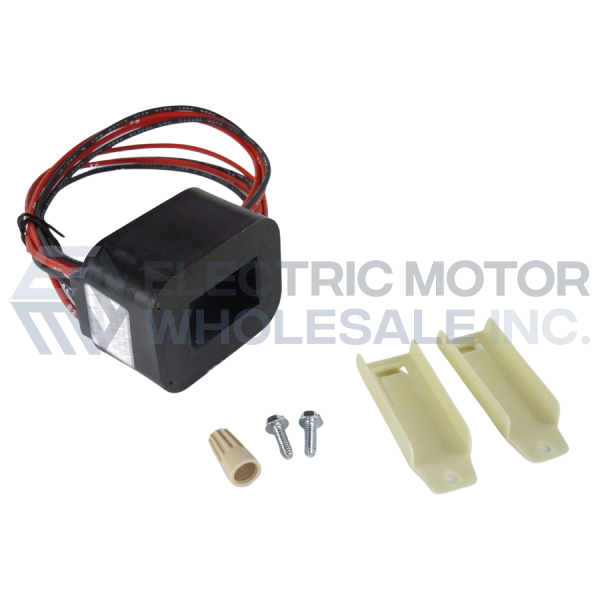

Image for K9 STEARNS Injection Molded 115VAC Class-B Coil 596695133

K9 STEARNS Injection Molded 115VAC Class-B Coil 596695133

Image for K9 STEARNS Injection Molded 230VAC Class-B Coil 596695233

K9 STEARNS Injection Molded 230VAC Class-B Coil 596695233

MSRP: $1,726.00

Regular Price

$

710

00

Image for K9 STEARNS Injection Molded 460VAC Class-B Coil 596695433

K9 STEARNS Injection Molded 460VAC Class-B Coil 596695433

Image for K9 STEARNS Injection Molded 575VAC Class-B Coil 596695533

K9 STEARNS Injection Molded 575VAC Class-B Coil 596695533

MSRP: $1,001.00

Regular Price

$

362

00

Image for K9 STEARNS Injection Molded 115/230VAC Class-B Coil 596695733

K9 STEARNS Injection Molded 115/230VAC Class-B Coil 596695733

Image for K9 STEARNS Injection Molded 230/460VAC Class-B Coil 596695933

K9 STEARNS Injection Molded 230/460VAC Class-B Coil 596695933
