STEARNS 56700 Series Genuine Replacement Parts

/

1.5 & 3FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256220014

1.5 & 3FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256220014

Picture is for reference only.

Part Number:

54256220014

Model/Spec Number:

5-42-5622-00-14

Manufacturer:

Stearns Parts
5-42-5622-00-14 STEARNS 1.5 & 3FT-LB 56700 Series AC REV-C Support Plate Assembly

Ordering Notes

This Stearns Product is Non-Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $490.79

Regular Price

USD

$

279

94

QTY
Login to View Discounts

Weight:

4 lbs

Dimensions:

7 x 7 x 5 inches

HS Code:

8505.90.7501

UPC:

662327942540

Technical Details

Stearns Series:

56700

Static Torque Lb.-ft.:

1.5, 3

Coil Size:

#4

Enclosure NEMA:

NEMA4, NEMA2

Enclosure IEC:

IP23, IP54

Coil Voltage AC:

AC ALL

Coil Hz:

60//50

Release:

Side Release

Endplate Material:

Aluminum

Mount Orientation:

Horizontal/Vertical

56700 Product Packet

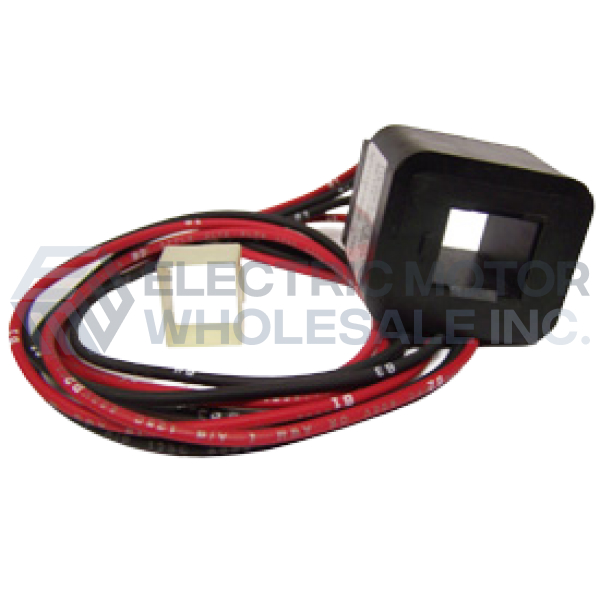

Image for #4 STEARNS Injection Molded 115VAC Class-B Coil 566640133

#4 STEARNS Injection Molded 115VAC Class-B Coil 566640133

Image for #4 STEARNS Injection Molded 230VAC Class-B Coil 566640733

#4 STEARNS Injection Molded 230VAC Class-B Coil 566640733

Image for #4 STEARNS Injection Molded 230VAC Class-B Coil 566640233

#4 STEARNS Injection Molded 230VAC Class-B Coil 566640233

Image for #4 STEARNS Injection Molded 208-230/460VAC Class-B Coil 566640933

#4 STEARNS Injection Molded 208-230/460VAC Class-B Coil 566640933

Image for #4 STEARNS Injection Molded 460VAC Class-B Coil 566640433

#4 STEARNS Injection Molded 460VAC Class-B Coil 566640433

Image for #4 STEARNS Injection Molded 575VAC Class-B Coil 566640533

#4 STEARNS Injection Molded 575VAC Class-B Coil 566640533

Image for #4 STEARNS Plastic Plunger Guide 808254400

#4 STEARNS Plastic Plunger Guide 808254400

Regular Price

$

17

09

Image for STEARNS 56000 Series REV-B Friction & Disc Kit 566860100

STEARNS 56000 Series REV-B Friction & Disc Kit 566860100

MSRP: $346.86

Regular Price

$

197

85
