...STEARNS 86000 Series Genuine Replacement Parts

/

STEARNS 500/750/1000FT-LB 86000 Series AC Support Plate 54266210050

STEARNS 500/750/1000FT-LB 86000 Series AC Support Plate 54266210050

86000 Series Drawing.jpg

Part Number:

54266210050

Model/Spec Number:

5-42-6621-00-50

Manufacturer:

Stearns Parts
5-42-6621-00-50 STEARNS 500-750-1000FT-LB 86000 Series AC Support Plate Assembly

Ordering Notes

Non-Returnable. STEARNS Products are normally stocked, but a standard 15-25 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

MSRP: $15,214.45

Regular Price

USD

$

8,241

37

QTY
Login to View Discounts

Weight:

60 lbs

Dimensions:

18 x 18 x 10 inches

HS Code:

8505.90.7501

UPC:

662327337582

Technical Details

Stearns Series:

86000

Static Torque Lb.-ft.:

500, 750, 1000

Coil Size:

#K9

Enclosure NEMA:

NEMA2, NEMA4

Enclosure IEC:

IP23, IP54

Coil Voltage AC:

AC ALL

Endplate Material:

Cast Iron

Mount Orientation:

Horizontal/Vertical

Application:

General Purpose

86000 Product Packet.pdf

Proper Installation of STEARNS support plate assembly video guide: How to Reset the Lever Arm on Stearns 86,000 Series Brake

Image for #9 STEARNS Injection Molded 115VAC Class-H Coil 596692967

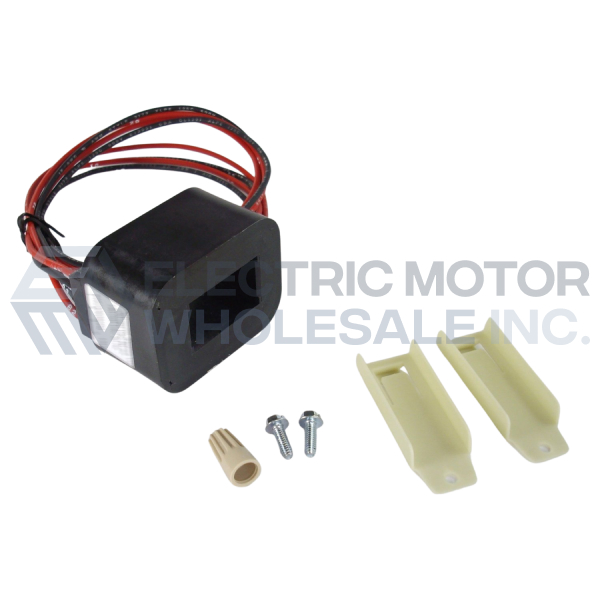

#9 STEARNS Injection Molded 115VAC Class-H Coil 596692967
