STEARNS 87000 Series REV-B NEMA4 Hardware Kit 566100702

STEARNS 87000 Series REV-B NEMA4 Hardware Kit 566100702


Part Number:

566100702

Model/Spec Number:

5-66-1007-02

Manufacturer:

Stearns Parts
5-66-1007-02 STEARNS 87000 REV-B NEMA4 Hardware Kit

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $336.24

Regular Price

USD

$

182

13

QTY
Login to View Discounts

Weight:

1 lb

Dimensions:

6 x 6 x 3 inches

HS Code:

7320.20.5060

UPC:

698210154554

Technical Details

Stearns Series:

87000/87100

Static Torque Lb.-ft.:

6-105

Coil Size:

#5, #6, #8

Enclosure NEMA:

NEMA4

Enclosure IEC:

IP54

Hub Bore Dia.:

ALL

Coil Voltage AC:

ALL

Coil Hz:

60//50

Release:

ALL

Endplate Material:

Aluminum, Cast Iron

87000 Product Packet

Stearns instruction on properly installing the 87000 series support plate.

Stearns YouTube Video: click here to view STEARNS 87000 SERIES Support Plate Factory Reset

Image for STEARNS 87000 Series Steel NEMA4 Housing Cover (Front Pull) 507705700

STEARNS 87000 Series Steel NEMA4 Housing Cover (Front Pull) 507705700

MSRP: $520.29

Regular Price

$

281

83

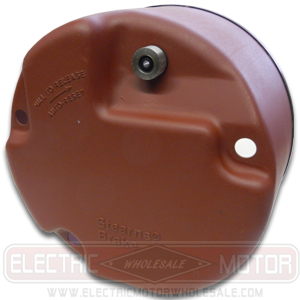

Image for STEARNS 87000/87100 Series NEMA2/4 Cast Iron Cover (Front Pull) 507706000
