...STEARNS 87000 Series Genuine Replacement Parts

/

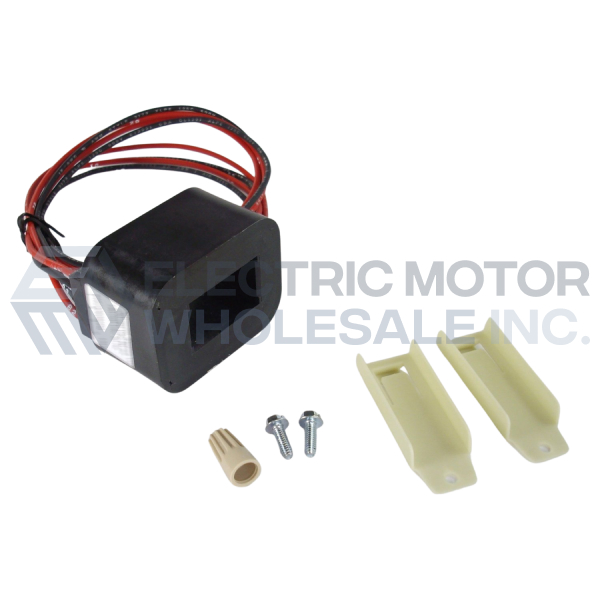

STEARNS 87000 Series #5 AC Solenoid Kit 566505100

STEARNS 87000 Series #5 AC Solenoid Kit 566505100

6-8 AC Solenoid.jpg

Part Number:

566505100

Model/Spec Number:

5-66-5051-00

Manufacturer:

Stearns Parts
5-66-5051-00 STEARNS 87000 Series #5 AC Solenoid Kit

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $972.14

Regular Price

USD

$

526

59

QTY
Login to View Discounts

Weight:

2 lbs

Dimensions:

6 x 6 x 4 inches

HS Code:

6813.89.0050

UPC:

662327211714

Technical Details

Stearns Series:

87000/87100

Static Torque Lb.-ft.:

6, 10

Coil Size:

#5

Enclosure NEMA:

NEMA2, NEMA4

Enclosure IEC:

IP23, IP54

Hub Bore Dia.:

ALL

Coil Voltage AC:

ALL AC COIL

Coil Hz:

60//50

Release:

ALL

Endplate Material:

Aluminum, Cast Iron

87000 Product Packet

Stearns instruction on properly installing the 87000 series support plate.

Stearns YouTube Video: click here to view STEARNS 87000 SERIES Support Plate Factory Reset

Image for #5 & #6 STEARNS Plastic Plunger Guide (EACH) 808255200

#5 & #6 STEARNS Plastic Plunger Guide (EACH) 808255200

MSRP: $23.59

Regular Price

$

20

47

Image for #5 & #6 STEARNS Metal Plunger Guide (EACH) 808255100

#5 & #6 STEARNS Metal Plunger Guide (EACH) 808255100

MSRP: $49.55

Regular Price

$

33

01

Image for #5 STEARNS Injection Molded 115VAC Class-B Coil 566650133

#5 STEARNS Injection Molded 115VAC Class-B Coil 566650133

Image for #5 STEARNS Injection Molded 115/230VAC Class-B Coil 566650733

#5 STEARNS Injection Molded 115/230VAC Class-B Coil 566650733

Image for #5 STEARNS Injection Molded 200VAC Class-B Coil 596652433

#5 STEARNS Injection Molded 200VAC Class-B Coil 596652433

MSRP: $521.00

Regular Price

$

114

00

Image for #5 STEARNS Injection Molded 230VAC Class-B Coil 566650233

#5 STEARNS Injection Molded 230VAC Class-B Coil 566650233

MSRP: $780.00

Regular Price

$

141

00

Image for #5 STEARNS Injection Molded 230/460VAC Class-B Coil 566650933

#5 STEARNS Injection Molded 230/460VAC Class-B Coil 566650933

MSRP: $722.00

Regular Price

$

254

00

Image for #5 STEARNS Injection Molded 460VAC Class-B Coil 566650433

#5 STEARNS Injection Molded 460VAC Class-B Coil 566650433

MSRP: $752.00

Regular Price

$

134

00

Image for #5 STEARNS Injection Molded 575VAC Class-B Coil 566650533

#5 STEARNS Injection Molded 575VAC Class-B Coil 566650533

MSRP: $415.00

Regular Price

$

160

00
