3HP WEG 1750RPM 145TC TEFC 180VDC PERMANENT MAGNET MOTOR MT-040

3HP WEG 1750RPM 145TC TEFC 180VDC PERMANENT MAGNET MOTOR MT-040


Part Number:

MT-040

Model/Spec Number:

14461749

Manufacturer:

WEG
MT-040 WEG 3HP NEMA High voltage permanent magnet DC motors are typically used with and SCR (thyristor) controller in applications requiring adjustable speed and constant torque throughout the speed range.
MSRP: $2,180.00

Regular Price

USD

$

1,940

20

QTY
Login to View Discounts

Weight:

118 lbs

Dimensions:

23 x 32 x 23 inches

HS Code:

8501.31.4000

Technical Details

Application:

General Purpose

Output HP:

3

Output RPM:

1750

Frame NEMA:

145TC

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

14.0

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

Enclosure IP:

IP55

WEG PM DC Brochure.pdf

WEG NEMA Frame Motors – SCR Rated permanent magnet DC motors are typically used with and SCR (thyristor) controller in applications requiring adjustable speed and constant torque throughout the speed range.

  • 7/8" Keyed output shaft
  • UL recognized Also CE and RoHs listed
  • Replaceable brushes
Image for KBPC-225 KB Electronics 15 Amp NEMA4X SCR Drive 230VAC Input 9391

KBPC-225 KB Electronics 15 Amp NEMA4X SCR Drive 230VAC Input 9391

MSRP: $367.00

Regular Price

$

256

90

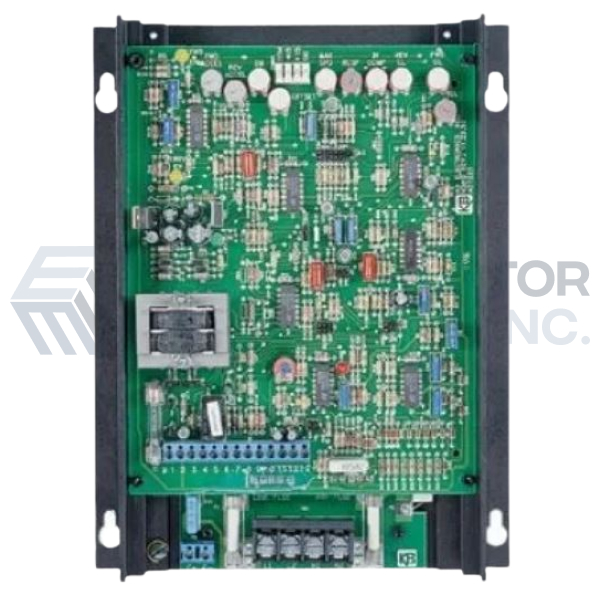

Image for KBRG-255 KB Electronics 26AMP DC Regenerative Chassis Drive 8821
