Product Overview

APRM-PC KB Electronics 9378 KBPC & KBPW Anti Plug Reversing Module with Switch (240D only) provides anti-plug instant reverse and solid state dynamic braking. It has been specifically designed for installation into the KBPC-240D speed control.

Part Number:

KB9378

Model/Spec Number:

APRM-PC

Manufacturer:

KB Electronics

Manufacturer Part Number:

9378

Technical Details

Specifications

Drive Type	SCR, PWM
Series	KBPC, KBPW
Forward-Brake-Reverse	Reversing Module
Brand	KB Electronics

Documentation

Product Manual

Additional Information

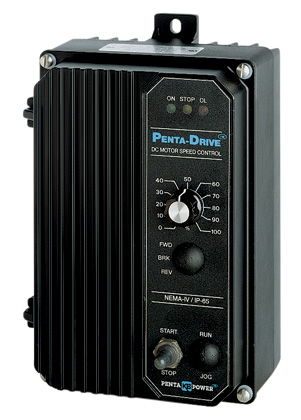

KBPC & KBPW Anti Plug Reversing Module (APRM-PC) with Switch Kit (240D only) provides anti-plug instant reverse and solid state dynamic braking. It has been specifically designed for installation into the KBPC-240D speed control. The patented circuitry senses armature voltage and permits armature switching to take place only when current levels are near zero. This eliminates contact arcing normally associated with relay reversing circuits.

Braking is achieved via an electronic circuit utilizing an SCR and brake resistor. An LED indicates when the APRM® is in the brake mode. Operation is made via a SPDT switch with center off. The unit installs easily into the inside cover of the KBPC control. Wiring is made via quick-connect terminals.
