3/4HP LEESON 1725RPM 56 TEFC 1PH EPOXY WASHDOWN MOTOR 112432.00

3/4HP LEESON 1725RPM 56 TEFC 1PH EPOXY WASHDOWN MOTOR 112432.00

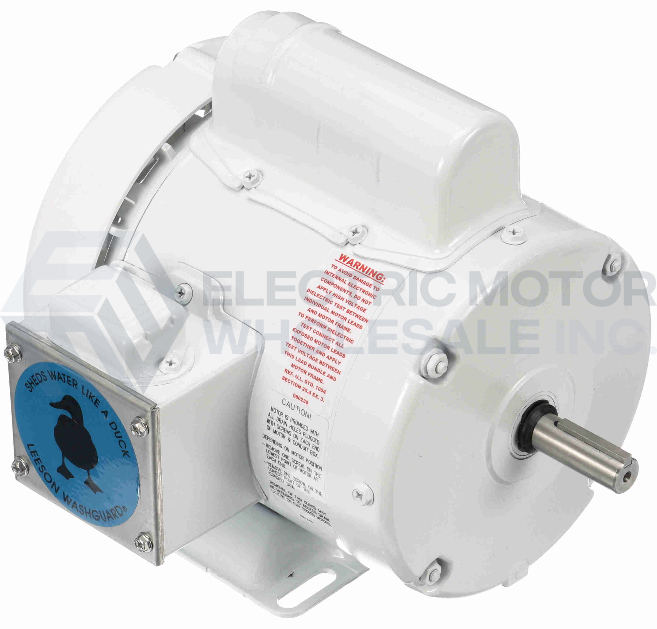

WASHGUARD 56 FRAME TEFC WITH BASE.jpg

Part Number:

112432.00

Model/Spec Number:

C6C17WB2

Manufacturer:

Regal Rexnord Commercial
112432.00 LEESON 3/4HP Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
MSRP: $1,439.00

Regular Price

USD

$

544

00

QTY
Login to View Discounts

Weight:

36 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.4040

UPC:

691720010839

Technical Details

Application:

Washdown Epoxy

Output HP:

3/4

Output KW:

0.56

Output RPM:

1725

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.

FEATURES:

  • Durable rolled steel frame with rigid base
  • USDA-approved white epoxy finish
  • 5/8" Keyed output shaft
  • Capacitor Start
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Double lip contact seals and v-ring seals used for shaft seals
  • Four endshield drains
  • Electronic solid state encapsulated switch
  • UL Recognized and CSA Certified
