1/17HP LEESON 100RPM TENV 180VDC PZ SERIES PARALLEL GEARMOTOR M1125035.00

1/17HP LEESON 100RPM TENV 180VDC PZ SERIES PARALLEL GEARMOTOR M1125035.00

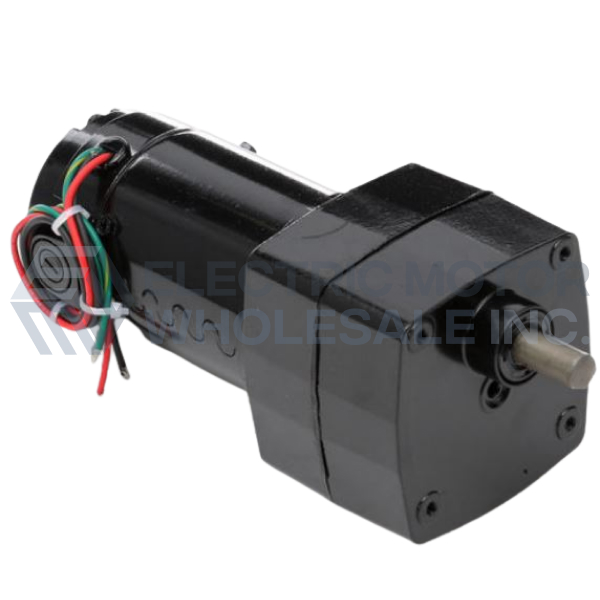

Picture is for reference only.

Part Number:

M1125035.00

Model/Spec Number:

985.631

Manufacturer:

Leeson Obsolete
M1125035.00 LEESON 1/17HP 100RPM PZ Series SCR Rated Parallel Gearmotor is totally enclosed for general purpose applications. Permanent magnet DC gearmotor performance matched for continuous duty service over a 60:1 speed range.

Item Discontinued

Click below to request an agent review potential options.

Weight:

11 lbs

Dimensions:

8 x 17 x 8 inches

HS Code:

8501.31.4000

UPC:

691720091012

Technical Details

Design:

Parallel Shaft

Input HP:

1/17

Output KW:

0.04

Output RPM:

100

Gear Ratio:

18:1

Torque Lb-in.:

36

Overhung Load (lb.):

171

Voltage:

180

Full Load Amperage:

0.36

Application:

General Purpose

Product Information Packet
