1/8HP LEESON 51RPM TENV 180VDC P300 SERIES PARALLEL GEARMOTOR M1125039.00

1/8HP LEESON 51RPM TENV 180VDC P300 SERIES PARALLEL GEARMOTOR M1125039.00

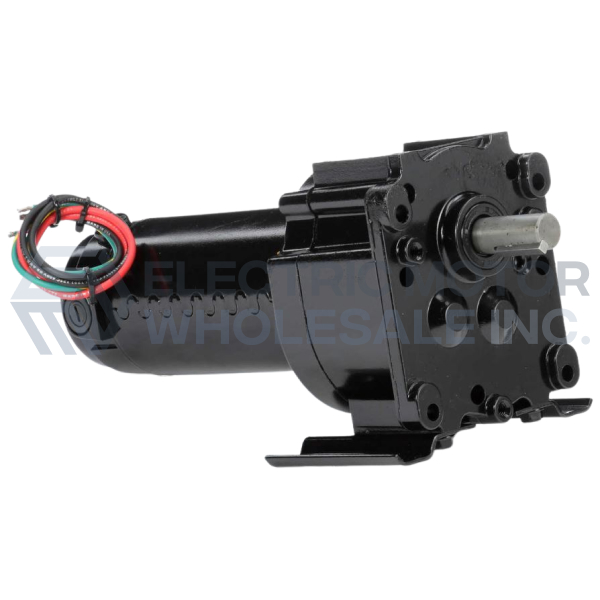

P300 PARALLEL TENV.jpg
Picture is for reference only.

Part Number:

M1125039.00

Model/Spec Number:

985.614

Manufacturer:

Leeson Obsolete
M1125039.00 LEESON 1/8HP 51RPM P300 SERIES SCR Rated DC Gearmotor performance matched for continuous duty service throughout the speed range. Constant torque 60:1 speed range when powered by a full-wave unfiltered SCR type adjustable speed control having a typical form factor of 1.3 to 1.4.

Item Discontinued

Click below to request an agent review potential options.

Weight:

16 lbs

Dimensions:

10 x 19 x 9 inches

HS Code:

8501.31.4000

UPC:

691720091050

Technical Details

Design:

Parallel Shaft

Input HP:

1/8

Output KW:

0.10

Output RPM:

51

Gear Ratio:

35:1

Torque Lb-in.:

130

Overhung Load (lb.):

277

Voltage:

180

Full Load Amperage:

0.66

Application:

General Purpose

Product Information Packet

985-614D
