3FT-LB STEARNS 56700 Series 56C Epoxy Washdown 230VAC Coupler Brake 105671405-PF

3FT-LB STEARNS 56700 Series 56C Epoxy Washdown 230VAC Coupler Brake 105671405-PF

56700 Coupler Brake IP56.jpg

Part Number:

105671405 PF

Model/Spec Number:

1-056-714-05-PF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

105671405 PF
1-056-714-05-PF STEARNS 3FT-LB NEMA4X Epoxy Washdown Coupler Brake is designed for application where mounting the brake between the motor and driven load is the preferred or most convenient location.

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $881.92

Regular Price

USD

$

755

52

QTY
Login to View Discounts

Weight:

15 lbs

Dimensions:

8 x 8 x 10 inches

HS Code:

8505.20.0000

UPC:

793699009088

Technical Details

Stearns Series:

56700

Static Torque Lb.-ft.:

3

Coil Size:

#4

Enclosure NEMA:

NEMA4X

Enclosure IEC:

IP54

Hub Bore Dia.:

B: 5/8"

Coil Voltage AC:

115/230//95/190

Coil Hz:

60//50

Release:

Side Release

Endplate Material:

Aluminum

56700 Product Packet.pdf

APPLICATIONS: Designed for Wash-Down applications where mounting the brake between the motor and driven load is the preferred or most convenient location. The are excellent for applications where a brake is needed to add to an existing equipment application without replacing the motor. These brakes are not suited for overhung loads to be applied to the output shaft.

FEATURES:

  • Rugged Cast Aluminum Construction
  • Sleeve provided with brake
  • NEMA4X IP54 Watertight Enclosure
  • BISSC Certified
  • ABS Type Approval Certified
  • Food Grade Epoxy White Paint
  • Coupler brakes are designed to be C-Face connected on both ends
  • Manual Release Knob, Maintained with Automatic Spring-Set Electrically Reset
  • Adjustable torque
Image for #4 STEARNS Injection Molded 230VAC Class-H Coil 596647958

#4 STEARNS Injection Molded 230VAC Class-H Coil 596647958

MSRP: $428.40

Regular Price

$

239

00

Image for STEARNS 56700/56800/56900 Series REV-C AC Solenoid Kit 596504701

STEARNS 56700/56800/56900 Series REV-C AC Solenoid Kit 596504701

MSRP: $396.41

Regular Price

$

214

73

Image for STEARNS 56000 Series REV-B 1-Friction Disc 566846200

STEARNS 56000 Series REV-B 1-Friction Disc 566846200

MSRP: $233.59

Regular Price

$

122

53

Image for STEARNS 56000 Series REV-B Friction & Disc Kit 566860100

STEARNS 56000 Series REV-B Friction & Disc Kit 566860100

MSRP: $346.86

Regular Price

$

187

89

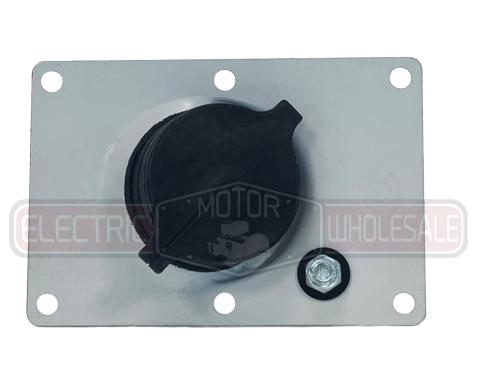

Image for 1.5 & 3FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256220014

1.5 & 3FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256220014

MSRP: $490.79

Regular Price

$

265

85

Image for STEARNS 56000 Series Horizontal Stationary Disc 1-Disc 566835400

STEARNS 56000 Series Horizontal Stationary Disc 1-Disc 566835400

MSRP: $127.42

Regular Price

$

73

57

Image for STEARNS 56700 Series 5/8" Output Shaft Kit 566886500

STEARNS 56700 Series 5/8" Output Shaft Kit 566886500

MSRP: $455.40

Regular Price

$

246

68

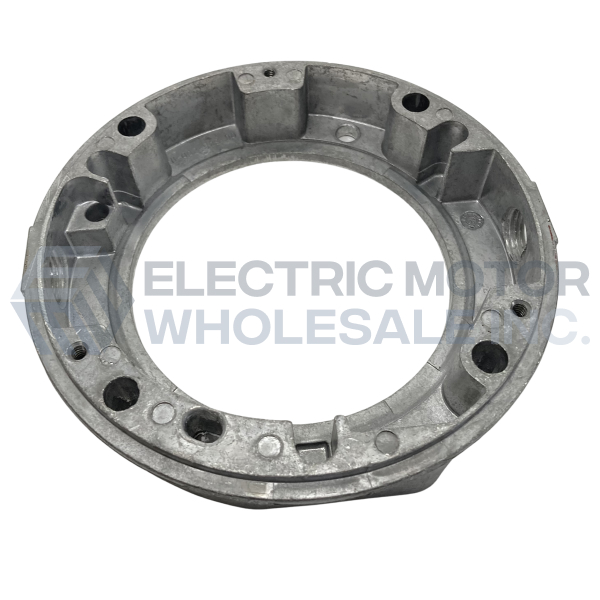

Image for STEARNS 56700 Series NEMA4X 1&2-Disc Endplate 502503900
