330FT-LB Stearns 82000 Series NEMA4 460VAC Brake 108204202TLF

330FT-LB Stearns 82000 Series NEMA4 460VAC Brake 108204202TLF

81-82000 IP23-54 Brake.jpg

Part Number:

108204202TLF

Model/Spec Number:

1-082-042-02-TLF

Manufacturer:

Stearns Brakes
1-082-042-02-TLF STEARNS 330 Ft-LB 460VAC Mounting Brake is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 85-95 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

MSRP: $10,911.97

Regular Price

USD

$

9,348

06

QTY
Login to View Discounts

Weight:

191 lbs

Dimensions:

34 x 32 x 21 inches

HS Code:

8505.20.0000

UPC:

662327052621

Technical Details

Stearns Series:

82000

Static Torque Lb.-ft.:

330

Coil Size:

#9

Strength:

4

Enclosure NEMA:

NEMA4

Enclosure IEC:

IP54

Hub Bore Dia.:

T: 2-1/2"

Coil Voltage AC:

460//380

Coil Hz:

60//50

Release:

Pull Release

82000 Product Packet

STEARNS 82000 NEMA4 Motor Mounting Brake

Features:

  • Self-Adjusting Design
  • Spring-Set Electrically Released
  • Coil Insulation: Class-H Standard

Special Quote Options:

  • Crane Carrier discs optional
  • Brass Stat Discs and Pressure Plate
  • Vertical Mount
Image for #9 STEARNS Injection Molded 460VAC Class-H Coil 596692975

#9 STEARNS Injection Molded 460VAC Class-H Coil 596692975

MSRP: $854.81

Regular Price

$

476

00

Image for #9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

#9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

MSRP: $1,280.78

Regular Price

$

693

78

Image for STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

MSRP: $633.54

Regular Price

$

343

17

Image for STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

MSRP: $322.86

Regular Price

$

174

89

Image for STEARNS 82000 Series Horizontal 3&5 Disc Pressure Plate 800520501

STEARNS 82000 Series Horizontal 3&5 Disc Pressure Plate 800520501

MSRP: $942.65

Regular Price

$

510

62

Image for 330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

MSRP: $6,292.99

Regular Price

$

3,408

79

Image for STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

MSRP: $824.67

Regular Price

$

446

70

Image for STEARNS 81000/82000 Series Lever Arm 517200100

STEARNS 81000/82000 Series Lever Arm 517200100

MSRP: $736.19

Regular Price

$

398

78

Image for STEARNS 82000 Series IP54 Endplate Seal 902001500

STEARNS 82000 Series IP54 Endplate Seal 902001500

MSRP: $297.31

Regular Price

$

161

05

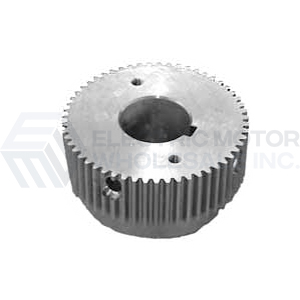

Image for Stearns 82000 Series 3-Disc Hub 2-1/2" Bore 51621020003T

Stearns 82000 Series 3-Disc Hub 2-1/2" Bore 51621020003T

MSRP: $2,251.02

Regular Price

$

1,219

33

Image for STEARNS 125-330FT-LB 82000 Series IP54 Cast Iron Endplate 52220114030F

STEARNS 125-330FT-LB 82000 Series IP54 Cast Iron Endplate 52220114030F

MSRP: $5,153.27

Regular Price

$

2,791

42
