550FT-LB Stearns 82000 Series NEMA2 460VAC No-Hub Brake 108206102LF

Part Number:

108206102 LF

Model/Spec Number:

1-082-061-02-LF

Manufacturer:

Stearns Brakes

1-082-061-02-LF STEARNS 550 Ft-LB 460VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 10-25 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

Regular Price

USD

$

12,367

01

QTY

Login to View Discounts

Shipping Details

Weight:

200 lbs

Dimensions:

34 x 24 x 21 inches

HS Code:

8505.20.0000

UPC:

782934944130

Technical Details

Specifications

Stearns Series:	82000
Static Torque Lb.-ft.:	440
Coil Size:	#9
Strength:	4
Enclosure NEMA:	NEMA2
Enclosure IEC:	IP23
Hub Bore Dia.:	Not Provided
Coil Voltage AC:	460/380
Coil Hz:	60//50
Release:	Pull Release

Documentation

82000 Product Packet

Additional Information

STEARNS NEMA Motor Mounting Brake

Features:

Hub not included
Self-Adjusting Design
Spring-Set Electrically Released
Coil Insulation: Class-H Standard

Special Quote Options:

Crane Carrier discs optional
Brass Stat Discs and Pressure Plate
Vertical Mount

Hubs

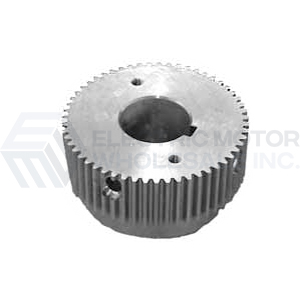

Stearns 82000 Series 5-Disc Hub 1-5/8" Bore 51621040003F

MSRP: $1,258.55

Regular Price

$

681

74

Stearns 82000 Series 5-Disc Hub 1-7/8" Bore 51621040003J

MSRP: $3,216.08

Regular Price

$

1,742

09

Stearns 82000 Series 5-Disc Hub 2" Bore 51621040003L

MSRP: $2,963.60

Regular Price

$

1,605

32

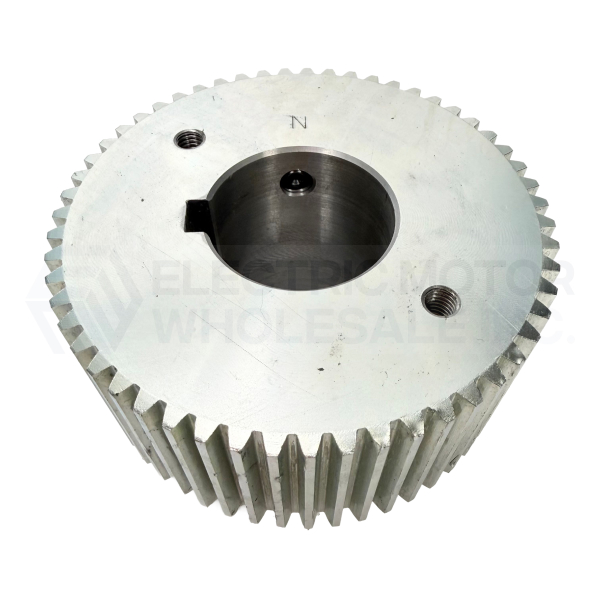

Stearns 82000 Series 5-Disc Hub 2-1/8" Bore 51621040003N

MSRP: $2,963.60

Regular Price

$

1,605

32

Stearns 82000 Series 5-Disc Hub 2-1/4" Bore 51621040003P

MSRP: $2,963.60

Regular Price

$

1,605

32

Stearns 82000 Series 5-Disc Hub 2-3/8" Bore 51621040003R

MSRP: $2,963.60

Regular Price

$

1,605

32

Stearns 82000 Series 5-Disc Hub 2-15/16" Bore 51621040003Y

MSRP: $3,801.25

Regular Price

$

2,059

06

Stearns 82000 Series 5-Disc Hub 2-7/8" Bore 51621040003X

MSRP: $2,963.60

Regular Price

$

1,605

32

Replacement Parts

#9 STEARNS Injection Molded 460VAC Class-H Coil 596692975

MSRP: $854.81

Regular Price

$

476

00

#9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

MSRP: $1,280.78

Regular Price

$

693

78

STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

MSRP: $633.54

Regular Price

$

343

17

STEARNS 82000 Series Steel Carrier Ring Friction Disc 566582100

MSRP: $1,801.53

Regular Price

$

975

85

STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

MSRP: $322.86

Regular Price

$

174

89

STEARNS 82000 Series Horizontal 3&5 Disc Pressure Plate 800520501

MSRP: $942.65

Regular Price

$

510

62

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

MSRP: $6,292.99

Regular Price

$

3,408

79

STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

MSRP: $824.67

Regular Price

$

446

70

STEARNS 82000 Series Lever Arm Kit 517200102

MSRP: $1,130.23

Regular Price

$

612

22

STEARNS 82000 Series 440-550FT-LB IP23 Cast Iron Endplate 80022224130F

MSRP: $5,291.32

Regular Price

$

2,866

21
