1.5HP WEG 3500RPM 143/5T TEFC 3PH EXPLOSION PROOF MOTOR 00156XT3E143T

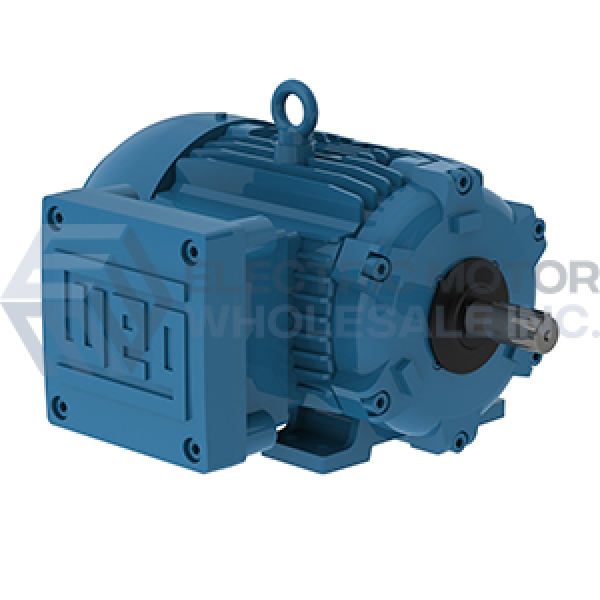

Picture is for reference only.

Part Number:

00156XT3E143T

Model/Spec Number:

14480957

Manufacturer:

WEG

00156XT3E143T WEG 1.5HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

MSRP: $916.00

Regular Price

USD

$

815

24

QTY

Weight:

72 lbs

Dimensions:

17 x 20 x 15 inches

HS Code:

8501.52.4000

UPC:

7909492221920

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 20:1 Class 1&2
7/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
